Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 G183558-01 Hinge Cover-white (2) Appelez-nous -
2 G167103 Screw-hinge Mounting (4) Appelez-nous -
3 G183714 Hinge-top Rs Appelez-nous -
4 G170156 Washer-nylon (2) Appelez-nous -
5 G183861 Shim-top Hinge (2) Appelez-nous -
6 G85642 Tube-rubber (3) Appelez-nous -
7 G174734 Ferrule-outer (2) Appelez-nous -
8 G174733 Ferrule - Inner (2) Appelez-nous -
9 G171193 Heat Conductor Appelez-nous -
10 3018640 Drain Outlet & Tube Appelez-nous -
11 G162890 Defrost Pan Appelez-nous -
12 G185726 Leveling Screw (2) Appelez-nous -
13 G161905-07 Grille Appelez-nous -
14 G162994 Clip-grille (2) Appelez-nous -
15 G99167 Screw-hinge Mounting (4) Appelez-nous -
16 G162383 Hinge-bottom (2) Appelez-nous -
17 G164355 Washer-5/16 Nylon (2) Appelez-nous -
18 G162903 Shim-bottom Hinge (2) Appelez-nous -
19 G142361 Pin Appelez-nous -
20 G141673 Nut Appelez-nous -
21 G77210 Speed Nut (2) Appelez-nous -
22 G149762 Light Switch-rs Appelez-nous -
23 G165846-01 Plug-switch Hole Ls Appelez-nous -
24 G169477-03 Coil Cover-lower Appelez-nous -
25 G184851 Screw- 8-32 X 9/16 Appelez-nous -
26 G164820 Washer-no. 10 Ext Tooth Appelez-nous -
27 G158022 Bracket, Cover Mounting Appelez-nous -
28 G187363 Screw Appelez-nous -
29 G170839 Washer- 3/16 Nylon Appelez-nous -
30 G169471 Support-coil Cover (5) Appelez-nous -
31 G163669 Support, Coil Cover (2) Appelez-nous -
32 G162703 Clip, Grounding Appelez-nous -
33 3018768 Plug-short Test Hole Appelez-nous -
34 G165416-11 Plug-decorative Appelez-nous -
35 G188853 Gasket Kit-cover Appelez-nous -
36 G165233 Gasket-cover Upper (2) Appelez-nous -
37 G164643-01 Mullion, White Appelez-nous -
38 G169100 Clip-mullion Mounting (3) Appelez-nous -
39 G169745-01 Mullion Trim-white Appelez-nous -
38A G169297 Clip-mullion Mounting (3) (non-illustrated) Appelez-nous -
3A G183716 Hinge-top Ls (non-illustrated) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

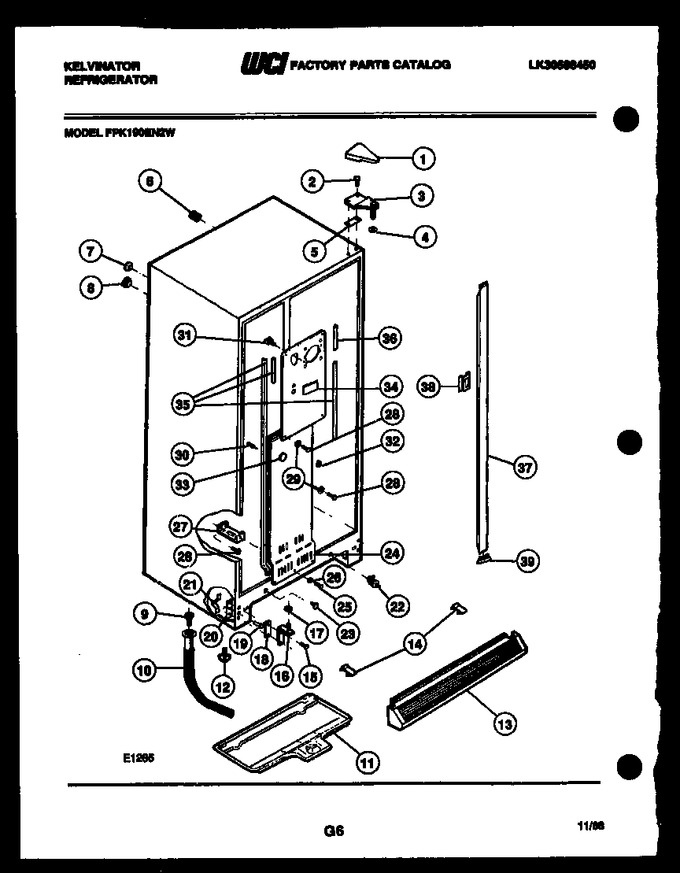

Diagram for FPK190EN2W
