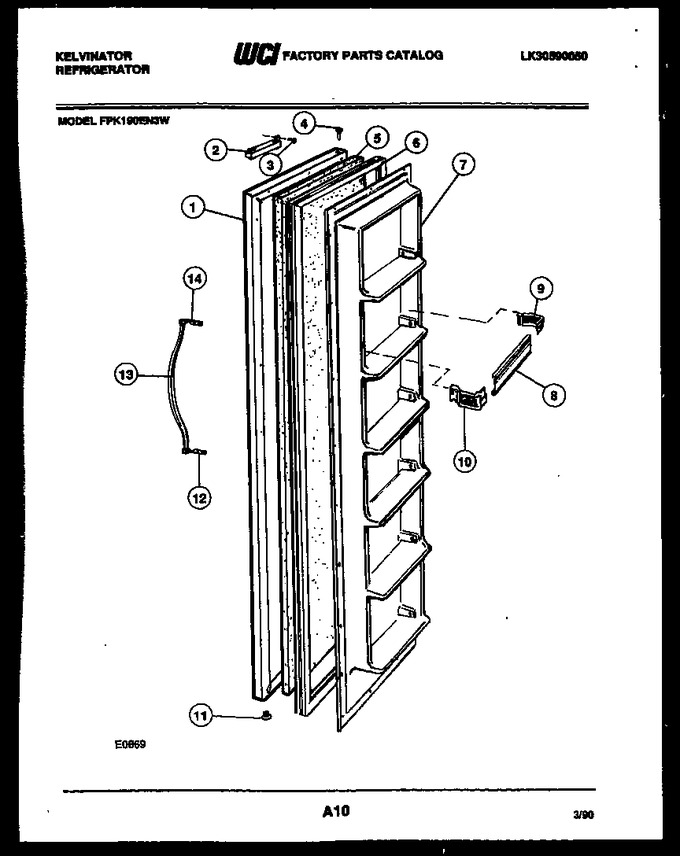

02 - Freezer Door Parts


03 - Refrigerator Door Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Refrigerator Control Assembly, Damp


07 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3916191		Freezer Door-almond		Appelez-nous	-
2	5303200272		Door Closer		Appelez-nous	-
3	5306588927		Screw-closer Mounting		Appelez-nous	-
4	5303001022		Hinge Bearing, Upper		Appelez-nous	-
5	5303007739		Insulation, Bulk		Appelez-nous	-
6	5303200474		Gasket-freezer		Appelez-nous	-
7	218843801		Screw   (Replaces: 5303001001)				$ 14.41
7	G166891-03		Inner Panel-freezer		Appelez-nous	-
8	3016228		Rack-freezer Door (6)		Appelez-nous	-
9	5316101801		Suppor-rs (6)		Appelez-nous	-
10	5316108001		Support-ls (6)		Appelez-nous	-
11	5315230801		Plug-door Bottom		Appelez-nous	-
12	5318945201		Handle End-bottom		Appelez-nous	-
13	5318945501		Grip-handle		Appelez-nous	-
14	5318945101		Handle End-top		Appelez-nous	-
*13590	5308011745		Screw				$ 10.38
13A	5303015132		Trim Insert-grip (non-illustrated)		Appelez-nous	-
13B	5300191430		Spacer-handle (2) (non-illustrated)		Appelez-nous	-
13C	5300172321		Screw-spacer Mounting (2) (non-illustrated)		Appelez-nous	-
13D	5303016230		Anchor Nut-spacer (2) (non-illustrated)		Appelez-nous	-
4A	5308012007		Hinge Bearing - Lower (non-illustrated)		Appelez-nous	-
7B	5303209636		Screw-panel Mtg (20) (non-illustrated)		Appelez-nous	-
