Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5315637618 Ice Tray (2) Appelez-nous -
2 G168748-01 Shelf-freezer Small (2) Appelez-nous -
3 G168748-02 Shelf-freezer Large (2) Appelez-nous -
4 5304509705 Grommet-shelf Mounting (10)   (Replaces: 5303001609) Special Order $ 10.01

5 5317835801 Trivet Shelf-freezer Appelez-nous -
6 5308016571 Plug-im Mtg Holes (3) Special Order $ 4.79

7 G167408-03 Shelf-refr (3) Appelez-nous -
8 3201959 Pan-large Upper Appelez-nous -
9 5308008727 Cover-pan Upper Appelez-nous -
10 3201960 Pan-small Lower Appelez-nous -
11 5316391601 Cover-pan Lower Appelez-nous -
12 G161013-71 Trim-pan (2) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

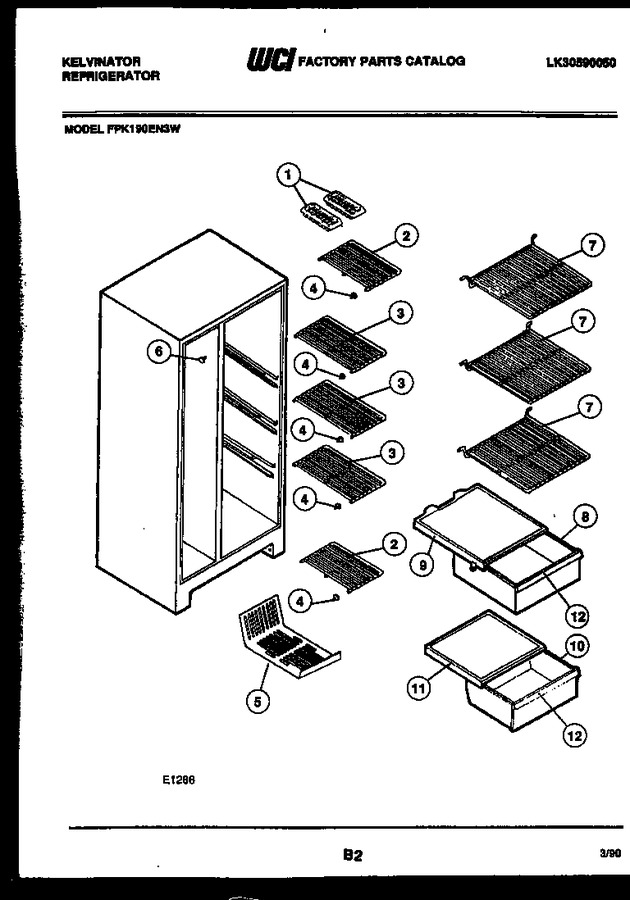

Diagram for FPK190EN3W
