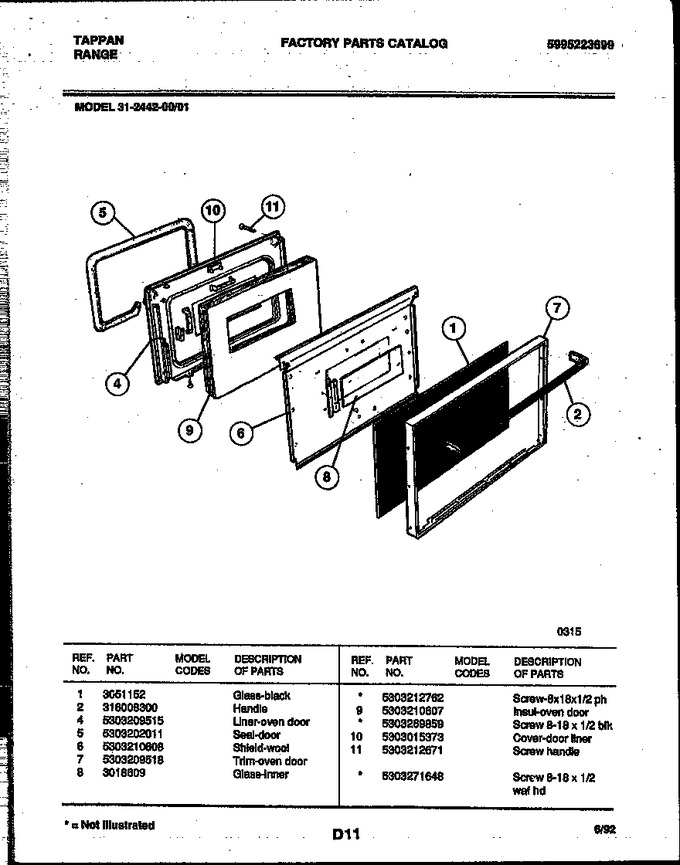

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3051152 | Glass-black |
|
- | |||||
| 2 | 316008300 | Handle |
|
- | |||||
| 4 | 5303209515 | Liner-oven Door |
|
- | |||||
| 5 | 5303202011 | Seal, Door |
|
$ 166.84 | |||||
| 6 | 5303210608 | Shield-wool |
|
- | |||||
| 7 | 5303209518 | Trim-oven Door |
|
- | |||||
| 8 | 3018609 | Glass-inner |
|
- | |||||
| 9 | 5303210607 | Insul-oven Door |
|
- | |||||
| 10 | 5303015373 | Cover-door Liner |
|
- | |||||
| 11 | 5303212671 | Screw Handle |
|
- | |||||
| *73455 | 5303271648 | Screw 8-18 X 1/2 Waf Hd |
|
Immediately | $ 13.46 | ||||
| 8A | 5303212762 | Screw-8 X 18 X 1/2 Ph (non-illustrated) |
|
- | |||||
| 9A | 5303269859 | Screw 8-18 X 1/2 Blk (non-illustrated) |
|
- |
