SELECT A DIAGRAM

01 - Cover Sheet


02 - Oven, Cabinet

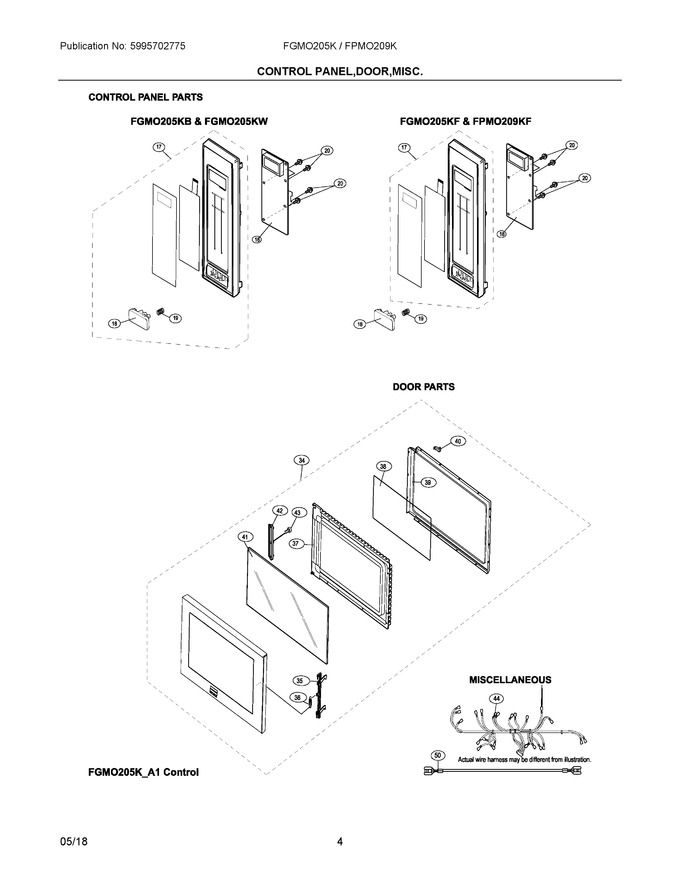

03 - Control Panel, Door, Misc.


04 - Wiring Schematic


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	5304472840		Control Board, Printed Circuit				$ 418.58
17	5304497439		Control Panel Assy, Stainless   (Replaces: 5304472841)				$ 262.49
18	5304497439		Push Button, Door, Stainless   (Replaces: 5304472845)				$ 262.49
19	5304440831		Spring, Door Button				$ 20.29
20	5304456930		Screw, 3 Mm X 10 Mm		Appelez-nous	-
34	5304472848		Door Assy, Complete, Stainless				$ 273.37
35	5304441893		Latch, Door   (Replaces: 5304440856)			Immediately	$ 48.91
36	5304440316		Spring, Door Latch			Immediately	$ 61.00
37	5304472852		Panel, Inner Door, Light Gray		Appelez-nous	-
38	5304440860		Seal, Door, Film				$ 63.09
39	5304440861		Choke Cover, Inner Door				$ 73.02
40	5304442145		Door Stop		Appelez-nous	-
41	5304472853		Panel, Door Glass, Silver		Appelez-nous	-
42	5304440862		Door Stop		Appelez-nous	-
43	5304452259		Screw		Appelez-nous	-
44	5304452260		Wiring Harness, Main		Appelez-nous	-
50	5304440870		Wire, High Voltage-a		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
