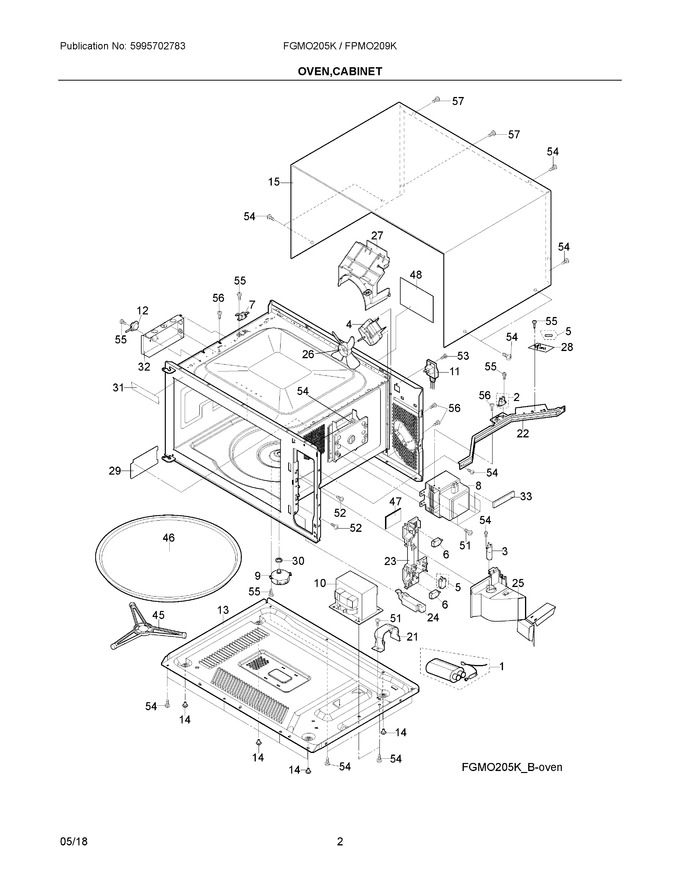

02 - Oven, Cabinet
03 - Control Panel, Door, Misc.
04 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304479019 | Capacitor/rectifier Kit, Hv |
|
- | |||||
| 2 | 5303319550 | Fuse, Magnetron |
|
$ 117.23 | |||||
| 3 | 5304500304 | Lamp Assembly, With Socket (Replaces: 5304478955) |
|
$ 63.79 | |||||
| 4 | 5304493152 | Motor, Cooling Fan (Replaces: 5304448490) |
|
$ 87.43 | |||||
| 5 | 5304479020 | Switch, Monitor, W/ceramic Fuse |
|
- | |||||
| 6 | 5304493153 | Switch, Interlock, Door Sensor (Replaces: 5304440026) |
|
Immediately | $ 83.38 | ||||
| 7 | 5304440780 | Fuse, Cavity Temp, 20 Amp, 250 V |
|
$ 85.76 | |||||
| 8 | 5304521745 | Magnetron (Replaces: 5304440781) |
|
$ 189.05 | |||||
| 9 | 5304448832 | Motor, Turntable (Replaces: 5304440782) |
|
Immediately | $ 74.09 | ||||
| 10 | 5304479021 | Transformer, Power |
|
- | |||||
| 11 | 5304440784 | Power Cord, Electric |
|
$ 120.49 | |||||
| 12 | 5304440785 | Sensor, Humidity, Cook Control |
|
$ 56.18 | |||||
| 13 | 5304478938 | Base, Unit Chassis |
|
$ 147.47 | |||||
| 14 | 5304478939 | Foot, Cabinet Support |
|
$ 19.06 | |||||
| 15 | 5304478940 | Cabinet, Outer Casing, Black |
|
$ 320.30 | |||||
| 21 | 5304478941 | Retainer, Capacitor Strap |
|
- | |||||
| 22 | 5304478942 | Bracket, Chassis Support |
|
- | |||||
| 23 | 5304503439 | Latch Hook (Replaces: 5304478943) |
|
Immediately | $ 60.62 | ||||
| 24 | 5304485407 | Lever, Door Release (Replaces: 5304478944) |
|
$ 63.36 | |||||
| 25 | 5304478956 | Duct, Magnetron |
|
- | |||||
| 26 | 5304467720 | Fan Blade, Mag Cooling Fan |
|
$ 17.64 | |||||
| 27 | 5304478945 | Duct, Cooling Fan |
|
- | |||||
| 28 | 5304492543 | Filter, Noise, Electronic (Replaces: 5304467698) |
|
$ 81.18 | |||||
| 29 | 5304478947 | Cover, Waveguide |
|
- | |||||
| 30 | 5304467718 | Bushing, Motor Shaft, Turntable |
|
$ 19.14 | |||||
| 31 | 5304472847 | Label, Menu |
|
- | |||||
| 32 | 5304478948 | Duct, Humidity Sensor |
|
- | |||||
| 33 | 5304478949 | Cushion, Magnetron Pad |
|
- | |||||
| 45 | 5304478951 | Support Assy, Turntable, Roller |
|
- | |||||
| 46 | 5304529482 | Tray, Turntable, Glass (Replaces: 5304440868) |
|
$ 108.44 | |||||
| 47 | 5304467771 | Label, Caution-monitor |
|
- | |||||
| 48 | 5304467770 | Label, Caution-dhhs |
|
- | |||||
| 51 | 5304467780 | Screw, 4 Mm X 8 Mm, Tap Tight |
|
$ 13.46 | |||||
| 52 | 5303319641 | Screw |
|
$ 12.76 | |||||
| 53 | 5304462315 | Screw, 4 Mm X 12 Mm, Ground |
|
- | |||||
| 54 | 5304467777 | Screw, 4 Mm X 8 Mm, Black |
|
$ 16.30 | |||||
| 54 | 5304502863 | Screw, 4 Mm X 8 Mm, Silver (Replaces: 5304451552) |
|
$ 10.85 | |||||
| 55 | 5304451550 | Screw, 4 Mm X 8 Mm |
|
- | |||||
| 56 | 5304450253 | Screw, 4 Mm X 8 Mm |
|
$ 14.89 | |||||
| 57 | 5304440873 | Screw, Torx, Tamper Proof |
|
$ 11.34 |
