SELECT A DIAGRAM

01 - Cover


03 - Door

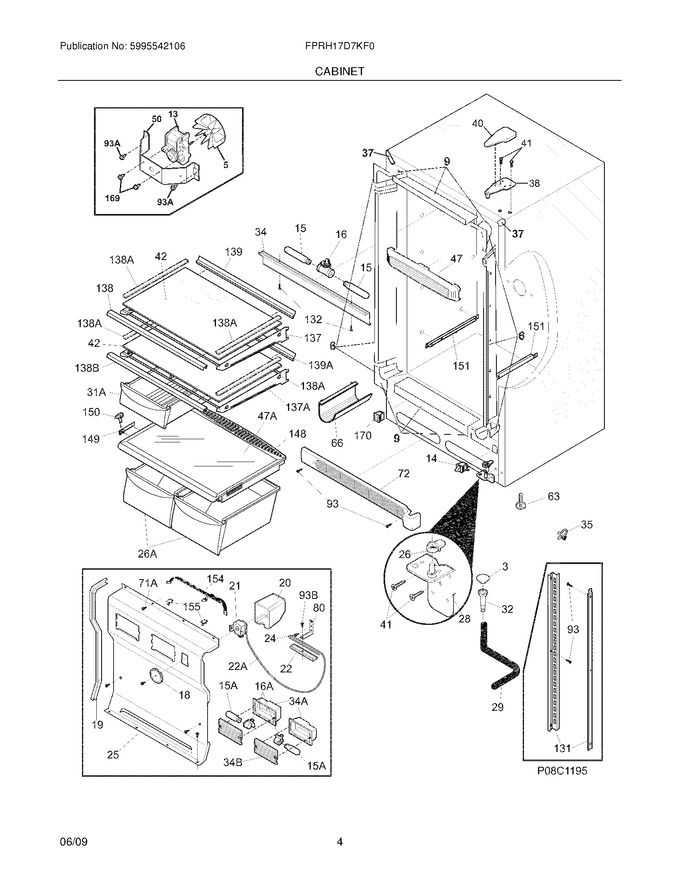

05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
5	297259600		Fan Blade,evaporator				$ 9.50
6	297200600		Breaker Kit W/corners,no Lock Slot				$ 52.36
9	297200100		Breaker Kit W/corners,32`` ,top And Bottom				$ 59.28
14	216822900		Switch,light/lamp ,black ,ramp   (Replaces: 216998100)			Immediately	$ 70.16
15	5304517886		Light Bulb/lamp,long ,blue Tint ,40 W ,120v   (Replaces: 216988100)			Immediately	$ 73.06
16	241622802		Socket-light   (Replaces: 241507803)				$ 65.93
18	216707200		Knob,temp Control				$ 44.10
19	216204902		Gasket-evap Cover			Immediately	$ 35.74
20	216967201		Cover,temp Control   (Replaces: 216967200)				$ 15.18
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
24	5304460604		Screw,type A ,10-24 X 3/8		Appelez-nous	-
25	297099253		Cover-evaporator				$ 92.61
26	216503300		Ramp,door Closer				$ 8.82
28	297283900		Hinge-bottom,stepped Pin			Immediately	$ 54.23
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 15.90
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
34	216816225		Shield-light				$ 35.54
35	216273000		Clip, Drain Hose				$ 22.42
37	5303918607		Trim-cabinet Corner,black ,(2)   (Replaces: 241611303)				$ 7.59
38	297283803		Hinge-upper   (Replaces: 297283800)			Immediately	$ 19.52
40	297164401		Cover-upper Hinge,black				$ 13.39
41	240578902		Screw,hex Head ,1/4-20 X 5/8			Immediately	$ 14.18
42	297265900		Glass-shelf   (Replaces: 216983102)				$ 156.15
47	297192903		Baffle,air   (Replaces: 297192900)			Immediately	$ 25.31
50	08013207		Bracket Fan Motor				$ 12.92
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
66	5303295947		Rack-wine		Appelez-nous	-
72	297036907		Grille/kickplate,32`` ,black   (Replaces: 297036901)				$ 39.29
80	06594601		Bracket, Control				$ 17.64
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
131	241513001		Channel-shelf Mtg,side ,(2)				$ 112.24
132	5304460601		Screw,6-20ab X 3/8		Appelez-nous	-
137	297050600		Frame-shelf,cantilever ,(2)			Immediately	$ 179.29
138	297050700		Trim-shelf,front ,(2)				$ 44.94
139	297050800		Trim-shelf,rear ,(2)				$ 50.03
148	216979403		Cover-crisper Pan				$ 128.73
149	5304492617		Damper,humidity Cont.   (Replaces: 240361301)			Immediately	$ 8.69
150	5304492617		Knob,humidity Cont.   (Replaces: 240361202)			Immediately	$ 8.69
151	216988201		Support-crspr Cover,lh				$ 67.33
151	216988200		Support-crspr Cover,rh				$ 68.04
154	297053000		Wire,jumper				$ 57.42
155	30534600		Clip,(2)   (Replaces: 5303313703)				$ 3.79
169	216912401		Screw,hex Washer Head ,8-32 X 0.500 ,bracket Fan Mtr,(2)				$ 12.76
170	297280401		Valve,breather ,black				$ 16.75
15A	241552802		Light Bulb/lamp,short   (Replaces: 297048600)			Immediately	$ 50.45
16A	297139501		Socket,light/lamp ,25 W				$ 19.52
22A	297058500		Tube,10`` ,plastic		Appelez-nous	-
26A	216959900		Pan-crisper,(2)				$ 169.68
31A	240530811		Pan-meat,w/o Graphics ,clear			Immediately	$ 135.77
34A	297053102		Shield-light				$ 31.76
34B	297053200		Lens,light				$ 43.95
47A	240350608		Insert-pan Cover,23.82`` X 15.50`` ,glass			Immediately	$ 45.50
71A	297146800		Screw,8-18ab X 0.470		Appelez-nous	-
93A	241500305		Screw,no.8 ,18x.63 ,self Pierce   (Replaces: 297174300)				$ 3.03
93B	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 13.65
F13	297309000		Motor,fan ,115 V   (Replaces: 297250000)			Immediately	$ 55.32
F137	297050601		Frame-shelf,cantilever				$ 201.50
F138	297050701		Trim-shelf,front				$ 51.08
F138	216983601		Trim-shelf,side				$ 47.92
F139	297050801		Trim-shelf,rear				$ 44.04
F21	5304492453		Control Temperature   (Replaces: 216715500)			Immediately	$ 269.25
NI	297109500		Washer,vinyl		Appelez-nous	-
NI	216327800		Clip,wire		Appelez-nous	-
NI	125963-48		Insulation,24`` ,drain Tube   (Replaces: 297001704)			Immediately	$ 59.16
NI	297226507		Energy Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
