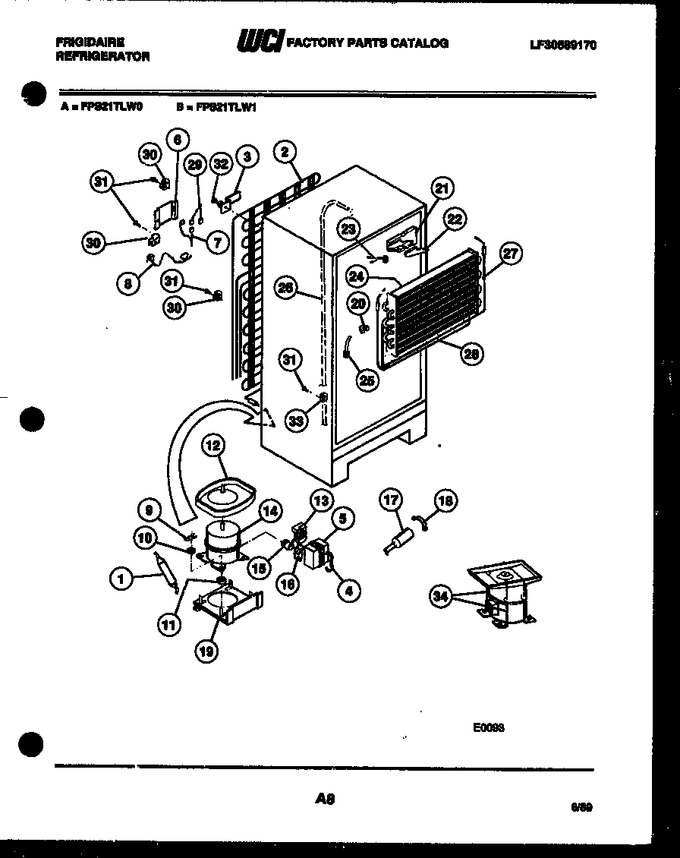

SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3007351		Drier		Appelez-nous	-
2	08000094		Condenser		Appelez-nous	-
3	08003600		Bracket-mounting (4)		Appelez-nous	-
4	3006412		Bale Strap		Appelez-nous	-
5	3006411		Cover-terminal		Appelez-nous	-
6	08013644		Cover-wiring		Appelez-nous	-
7	08009628		Wiring Harness, Compressor		Appelez-nous	-
8	08000064		Service Cord		Appelez-nous	-
9	08003596		Clip (4)		Appelez-nous	-
10	08003597		Washer (4)		Appelez-nous	-
11	08008778		Grommet (4)		Appelez-nous	-
12	08012951		Defrost Pan, Original Compressor		Appelez-nous	-
13	08017226		Relay		Appelez-nous	-
14	G189462		Compressor W/ Electricals		Appelez-nous	-
15	08017532		Overload		Appelez-nous	-
17	3916391		Capacitor Kit		Appelez-nous	-
18	08017231		Strap-capacitor Mtg		Appelez-nous	-
19	08013663		Plate-compressor Mounting		Appelez-nous	-
20	08017227		Insulation Block Ls		Appelez-nous	-
21	08013648		Insulation Block Rs		Appelez-nous	-
22	08013646		Insulation Plug Rs		Appelez-nous	-
23	08000073		Thermostat		Appelez-nous	-
24	08000062		Evaporator		Appelez-nous	-
25	08000110		Strap-evap/heater (2)		Appelez-nous	-
26	08010274		Heat Exchanger		Appelez-nous	-
27	08000061		Heater-defrost		Appelez-nous	-
28	G166511-02		Insulator		Appelez-nous	-
29	3019040		Wiring Harness-divider		Appelez-nous	-
30	3001548		Clamp-cable		Appelez-nous	-
31	08016629		Screw-clamp Mtg		Appelez-nous	-
32	08000039		Screw		Appelez-nous	-
33	08000133		Clamp		Appelez-nous	-
34	3916001		Pan Retainer Kit		Appelez-nous	-
*32291	08017610		Sound Tape		Appelez-nous	-
*32292	09960001		Hot Tube Repair Kit		Appelez-nous	-
12A	08012951		Defrost Pan, Service Compressor		Appelez-nous	-
12B	08003611		Lock Nut (non-illustrated)		Appelez-nous	-
3A	08009617		Washer		Appelez-nous	-
