SELECT A DIAGRAM

01 - Bucket And Drawer Assy


02 - Cabinet And Start Switch Assy

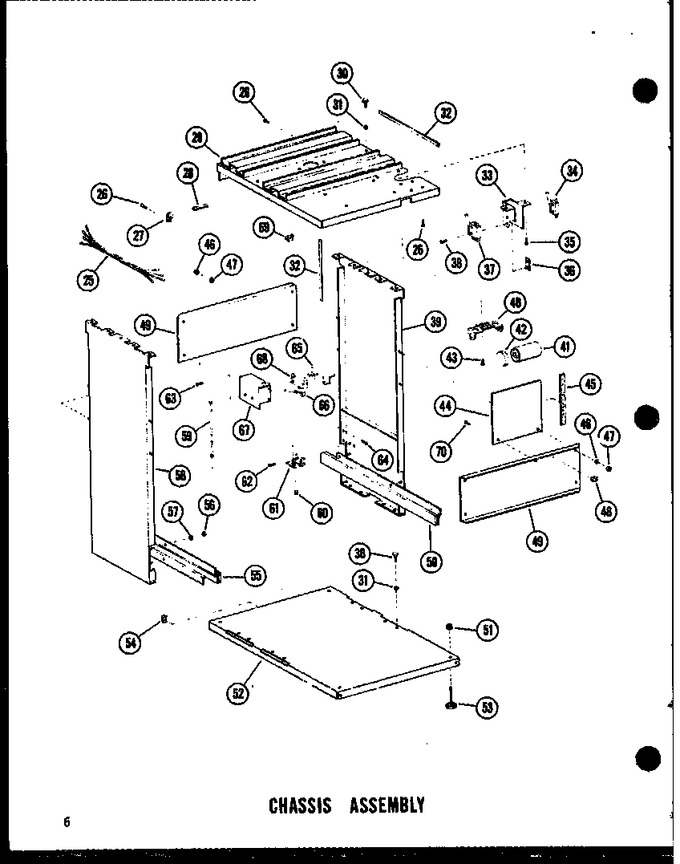

03 - Chassis Assy


04 - Ram And Drive Screw Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
25	D1801802		Wiring Harness		Appelez-nous	-
26	M0253543		Screw K		Appelez-nous	-
27	M0102319		Clamp		Appelez-nous	-
28	A0304501		Connector A-k		Appelez-nous	-
29	C1701501		Wldmt-top Chassis		Appelez-nous	-
30	M0204959		Screw-machine		Appelez-nous	-
31	M0272807		Washer-lock		Appelez-nous	-
32	A1504602		Sleeve K		Appelez-nous	-
32	A1504601		Sleeve		Appelez-nous	-
33	B1603101		Bracket-switch		Appelez-nous	-
34	B1601802		Switch-top Limit		Appelez-nous	-
35	M0253543		Screw K		Appelez-nous	-
36	M0289502		Speed Nut		Appelez-nous	-
37	B1601901		Switch-directional		Appelez-nous	-
38	M0202521		Screw		Appelez-nous	-
39	B1609804		Channel Guide		Appelez-nous	-
40	M0370803		Bracket-capacitor		Appelez-nous	-
41	M0300603		Capacitor		Appelez-nous	-
42	M0300604		End Cap, Capacitor		Appelez-nous	-
43	M0234255		Screw		Appelez-nous	-
44	B1606203		Spacer		Appelez-nous	-
45	A3030302		Gasket		Appelez-nous	-
46	M0272608		Lockwasher		Appelez-nous	-
47	M0281011		Hex Nut, 5/16``-18, Track		Appelez-nous	-
48	M0110502		Clip		Appelez-nous	-
49	B1600701		Brace-chassis		Appelez-nous	-
50	C1703902		Track-rh		Appelez-nous	-
51	M0283610		Nut		Appelez-nous	-
52	C1701402		Wldmt-base Pan		Appelez-nous	-
53	B1601601		Foot-levelling		Appelez-nous	-
54	M0288411		Speed Nut		Appelez-nous	-
55	C1703901		Track-lh		Appelez-nous	-
56	M0281011		Hex Nut, 5/16``-18, Track		Appelez-nous	-
57	M0272608		Lockwasher		Appelez-nous	-
58	B1609804		Channel Guide		Appelez-nous	-
59	A1506403		Rod Hinge K		Appelez-nous	-
60	M0560101		Rivet K		Appelez-nous	-
61	B1608102		Spring, Hinge K		Appelez-nous	-
62	A4539611		Pop Rivet		Appelez-nous	-
63	M0251008		Screw K		Appelez-nous	-
64	M0243230		Screw K		Appelez-nous	-
65	B1609101		Back Sw Cover K		Appelez-nous	-
66	A1504302		Act. Switch K		Appelez-nous	-
67	B1608201		Cover Switch K		Appelez-nous	-
68	B1606602		Switch K		Appelez-nous	-
69	M0110501		Clip K		Appelez-nous	-
70	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
