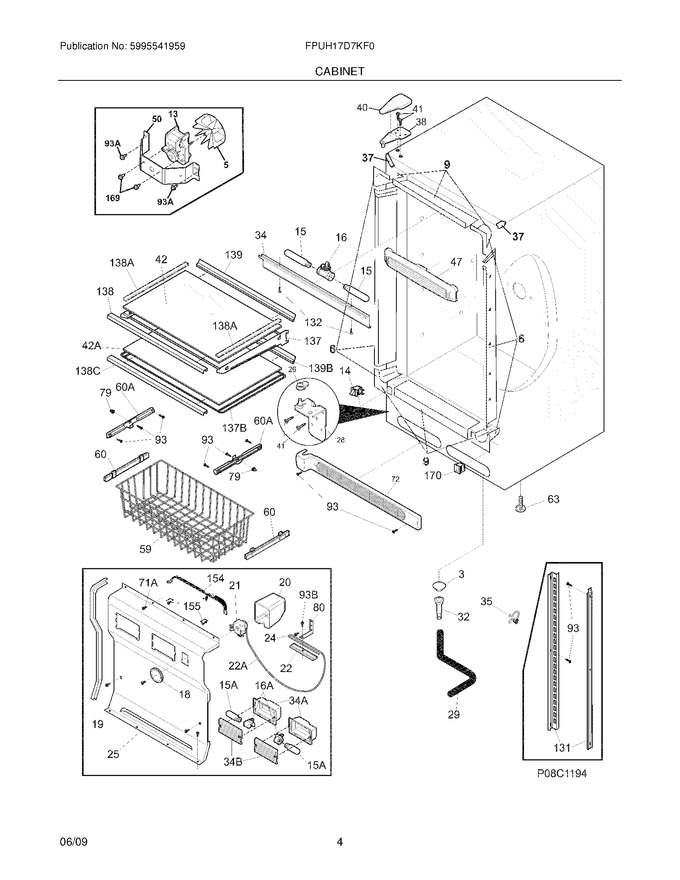

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
5	297259600		Fan Blade,evaporator				$ 9.50
6	297200600		Breaker Kit W/corners,no Lock Slot				$ 52.36
9	297200100		Breaker Kit W/corners,32`` ,top And Bottom				$ 59.28
14	216822900		Switch,light/lamp ,black ,ramp   (Replaces: 216998100)			Immediately	$ 70.16
15	5304517886		Light Bulb/lamp,long ,blue Tint ,40 W ,120v   (Replaces: 216988100)			Immediately	$ 73.06
16	241622802		Socket-light   (Replaces: 241507803)				$ 65.93
18	216707200		Knob,temp Control				$ 44.10
19	216204902		Gasket-evap Cover			Immediately	$ 35.74
20	216967201		Cover,temp Control   (Replaces: 216967200)				$ 15.18
21	5304513033		Control- Temperature   (Replaces: 216715200)			Immediately	$ 83.14
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
24	5304460604		Screw,type A ,10-24 X 3/8		Appelez-nous	-
25	297099253		Cover-evaporator				$ 92.61
26	297248200		Ramp,door Closer ,lh				$ 12.77
28	297283901		Hinge-bottom,stepped Pin ,lh				$ 25.52
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 15.90
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
34	216816225		Shield-light				$ 35.54
35	216273000		Clip, Drain Hose				$ 22.42
37	5303918607		Trim-cabinet Corner,black ,(2)   (Replaces: 241611303)				$ 7.59
38	297283803		Hinge-upper   (Replaces: 297283800)			Immediately	$ 19.52
40	297164401		Cover-upper Hinge,black				$ 13.39
41	240578902		Screw,hex Head ,1/4-20 X 5/8			Immediately	$ 14.18
42	297265900		Glass-shelf   (Replaces: 216983102)				$ 156.15
47	297192903		Baffle,air   (Replaces: 297192900)			Immediately	$ 25.31
50	08013207		Bracket Fan Motor				$ 12.92
59	297119000		Basket,(2)		Appelez-nous	-
60	297054201		Slide-basket,lh ,(2) ,w/clips				$ 601.06
60	297054200		Slide-basket,rh ,(2) ,w/clips				$ 180.73
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
72	297036907		Grille/kickplate,32`` ,black   (Replaces: 297036901)				$ 39.29
79	301036		Nut-insert   (Replaces: 3017666)				$ 15.90
80	06594601		Bracket, Control				$ 17.64
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
131	241513001		Channel-shelf Mtg,side ,(2)				$ 112.24
132	5304460601		Screw,6-20ab X 3/8		Appelez-nous	-
137	297050600		Frame-shelf,cantilever			Immediately	$ 179.29
138	297050700		Trim-shelf,front				$ 44.94
139	297050800		Trim-shelf,rear				$ 50.03
154	297053000		Wire,jumper				$ 57.42
155	30534600		Clip,(2)   (Replaces: 5303313703)				$ 3.79
169	216912401		Screw,hex Washer Head ,8-32 X 0.500 ,bracket Fan Mtr,(2)				$ 12.76
170	297280401		Valve,breather ,black				$ 16.75
15A	241552802		Light Bulb/lamp,short   (Replaces: 297048600)			Immediately	$ 50.45
16A	297139501		Socket,light/lamp ,25 W				$ 19.52
22A	5303916855		Tube,sensor Sleeve ,plastic ,clear				$ 60.96
34A	297053102		Shield-light				$ 31.76
34B	297053200		Lens,light				$ 43.95
42A	297007702		Glass-shelf,sliding				$ 153.30
60A	297013500		Slide,basket				$ 38.98
71A	297146800		Screw,8-18ab X 0.470		Appelez-nous	-
93A	241500305		Screw,no.8 ,18x.63 ,self Pierce   (Replaces: 297174300)				$ 3.03
93B	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 13.65
F13	297309000		Motor,fan ,115 V   (Replaces: 297250000)			Immediately	$ 55.32
F137	297007600		Frame-shelf,sliding				$ 118.93
F138	216983601		Trim-shelf,side				$ 47.92
F138	297007800		Trim-shelf,front				$ 36.67
F139	297007900		Trim-shelf,rear				$ 37.05
NI	297109500		Washer,vinyl		Appelez-nous	-
NI	216327800		Clip,wire		Appelez-nous	-
NI	297049500		Clip-slide,basket			Immediately	$ 20.56
NI	216893800		Cover,external ,ice Maker ,(2)		Appelez-nous	-
NI	216910416		Energy Guide		Appelez-nous	-
NI	241586701		Plug-foam-wtr-inlet,round				$ 17.72
NI	125963-48		Insulation,24`` ,drain Tube   (Replaces: 297001704)			Immediately	$ 59.16
NI	297013100		Instructions,water Line				$ 3.55
NI	240494001		Plug,white   (Replaces: 297095300)			Immediately	$ 18.20
NI	216901700		Installation Instructions,icemaker		Appelez-nous	-
NI	IM116000		Ice Maker Kit   (Replaces: IM501)			Immediately	$ 201.83
