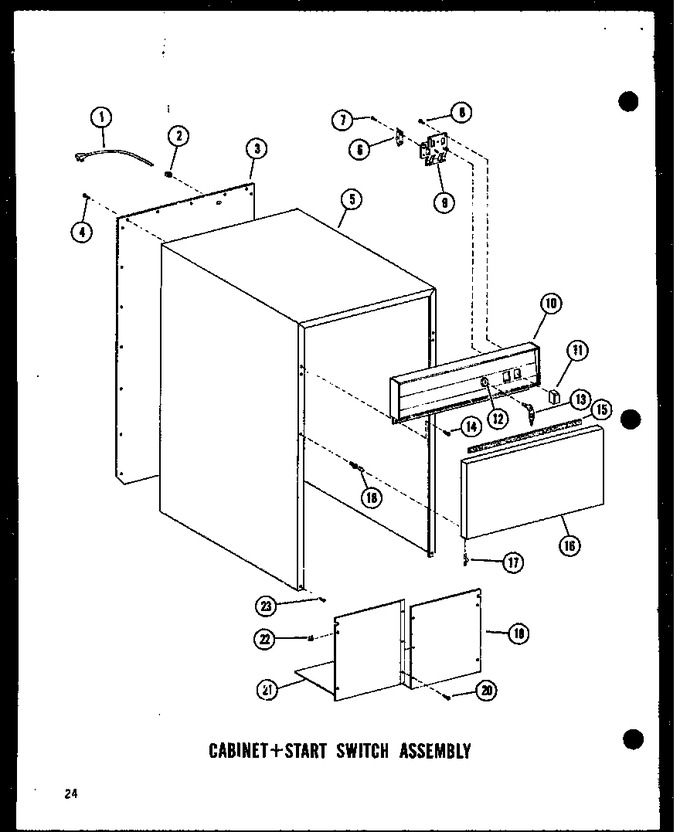

01 - Bucket + Drawer Assy


02 - Cabinet + Start Switch Assy


03 - Chassis Assy


04 - Ram + Drive Screw Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B1604802		Cord Set		Appelez-nous	-
2	A0319703		Strain Relief K		Appelez-nous	-
3	D1802702		Back-copper		Appelez-nous	-
3	D1802704		Back-gold		Appelez-nous	-
3	D1802701		Back-white		Appelez-nous	-
3	D1802703		Back-avocado		Appelez-nous	-
4	WP489464		Screw K   (Replaces: M0211317)			Immediately	$ 7.05
5	C1705706		Wrapper-copper		Appelez-nous	-
5	C1705705		Outer Case White		Appelez-nous	-
5	C1705708		Outer Case Autumn Gold		Appelez-nous	-
5	C1705707		Wrapper-avocado		Appelez-nous	-
6	B1602101		Switch-lock		Appelez-nous	-
7	M0227525		Screw A-k		Appelez-nous	-
7	M0272203		Washer		Appelez-nous	-
8	WPW10068250		Screw   (Replaces: M0234029)				$ 3.66
9	C1704901		Switch Assy K		Appelez-nous	-
10	B1605201		Control Panel		Appelez-nous	-
11	C1704702		Button-orange		Appelez-nous	-
11	C1704701		Button-white		Appelez-nous	-
12	B1602502		Lock Assembly, Hudson		Appelez-nous	-
13	B1602504		Key-hudson		Appelez-nous	-
14	8169479		Screw   (Replaces: M0215318)				$ 6.26
15	A3030302		Gasket		Appelez-nous	-
16	C1703507		Door Pan-c		Appelez-nous	-
16	C1703508		Door Pan-a		Appelez-nous	-
16	C1703506		Door Pan-w		Appelez-nous	-
16	C1703509		Door Pan-g		Appelez-nous	-
17	M0100302		Spring		Appelez-nous	-
18	A4680401		Strike		Appelez-nous	-
19	B1603306		Shield-rh		Appelez-nous	-
20	M0211530		Screw		Appelez-nous	-
21	B1603206		Shield-lh		Appelez-nous	-
22	M0288107		Speed Nut		Appelez-nous	-
23	M0253343		Screw K		Appelez-nous	-
