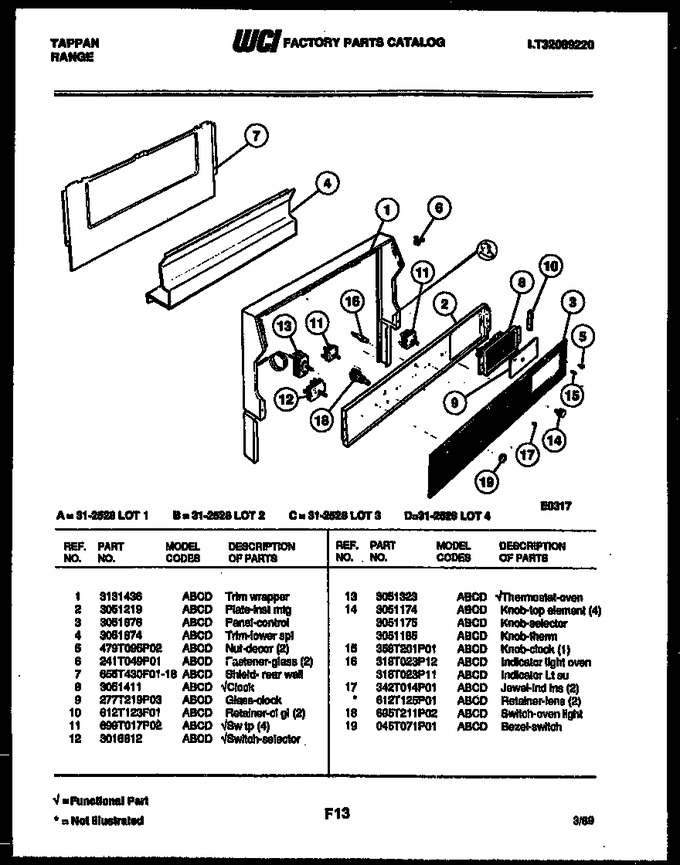

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Body Parts
03 - Backguard
04 - Door Parts
05 - Drawer Parts
06 - Broiler Parts
07 - Cooktop Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3131436 | Trim Wrapper |
|
- | |||||
| 2 | 3051219 | Plate-inst Mtg |
|
- | |||||
| 3 | 3051876 | Panel-control |
|
- | |||||
| 4 | 3051874 | Trim-lower Spl |
|
- | |||||
| 5 | 479T095P02 | Nut-decor (2) |
|
- | |||||
| 6 | 241T049P01 | Fastener-glass (2) |
|
- | |||||
| 7 | 655T430F01-18 | Shield-rear Wall |
|
- | |||||
| 8 | 3051411 | Clock |
|
- | |||||
| 9 | 277T219P03 | Glass-clock |
|
- | |||||
| 10 | 612T123F01 | Retainer-cl Gl (2) |
|
- | |||||
| 11 | 699T017P02 | Sw Tp (4) |
|
- | |||||
| 12 | 3016812 | Switch-selector |
|
- | |||||
| 13 | 3051323 | Thermostat-oven |
|
- | |||||
| 14 | 3051175 | Knob-selector |
|
- | |||||
| 14 | 3051185 | Knob Therm |
|
- | |||||
| 14 | 3051174 | Knob-top Element (4) |
|
- | |||||
| 15 | 358T201P01 | Knob-clock (1) |
|
- | |||||
| 16 | 318T023P11 | Indicator Lt Su |
|
- | |||||
| 16 | 318T023P12 | Indicator Light, Oven |
|
- | |||||
| 17 | 342T014P01 | Jewel-ind Ins (2) |
|
- | |||||
| 18 | 695T211P02 | Switch - Oven Light |
|
- | |||||
| 19 | 045T071P01 | Bezel, Switch |
|
- | |||||
| 17A | 612T125P01 | Retainer-lens (2) (non-illustrated) |
|
- |
