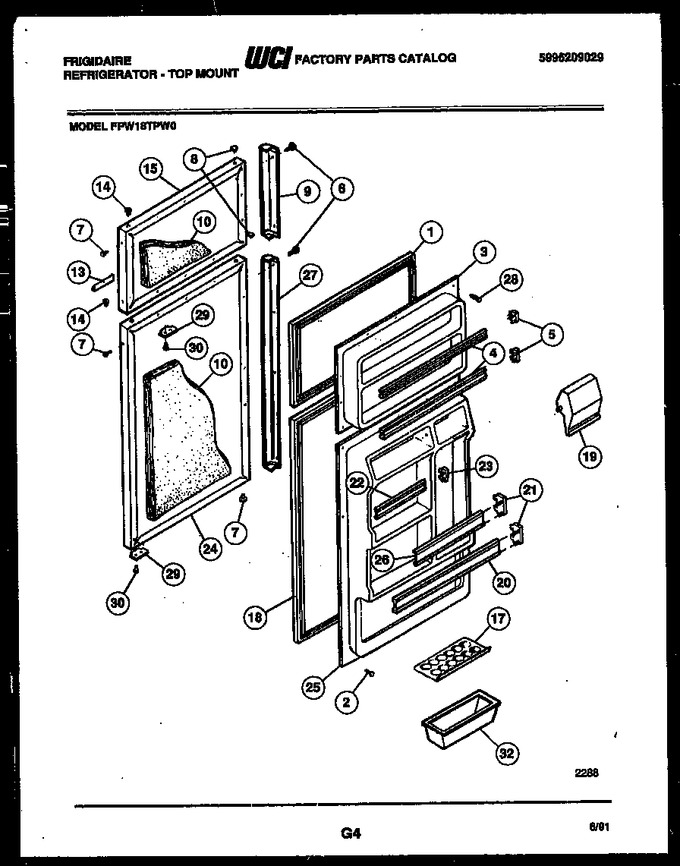

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017189 | Gasket, Freezer |
|
- | |||||
| 2 | 5308002748 | Screw |
|
- | |||||
| 3 | 3205318 | Panel, Freezer, Inner |
|
- | |||||
| 4 | 3018972 | Rack, Freezer (2) |
|
- | |||||
| 5 | 5303323480 | Support, Rack, Rh (2) (Replaces: 5303017378) |
|
$ 14.18 | |||||
| 6 | 5303272566 | Screw-handle (6) White |
|
- | |||||
| 7 | 240494001 | Plug Button, White (8) (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 8 | 5308000134 | Plug Button, White (2) |
|
$ 5.62 | |||||
| 9 | 5303272664 | Handle-frzr-complete White |
|
- | |||||
| 10 | 5303007739 | Insulation, Bulk |
|
- | |||||
| 13 | 3201581 | Nameplate Assy |
|
- | |||||
| 14 | 5308012007 | Bearing, Hinge (8) |
|
- | |||||
| 15 | 5303916052 | Panel-freezer White |
|
- | |||||
| 17 | 5303018932 | Egg Tray |
|
- | |||||
| 18 | 5308017487 | Gasket, Refrigerator |
|
- | |||||
| 19 | 3205319 | Door, Dairy |
|
- | |||||
| 20 | 3205320 | Rack, Refr |
|
- | |||||
| 21 | 5303325990 | Support, Rack, Rh (2) (Replaces: 5303203262) |
|
Immediately | $ 17.01 | ||||
| 22 | 3018423 | Rack, Refr |
|
- | |||||
| 23 | 5303323480 | Support, Rack, Rh (Replaces: 5303017378) |
|
$ 14.18 | |||||
| 24 | 5303916621 | Panel-refr-white |
|
- | |||||
| 25 | 3205321 | Panel, Refr (inner) |
|
- | |||||
| 26 | 3019018 | Rack, Refr |
|
- | |||||
| 27 | 5303272661 | Handle-refr-complete White |
|
- | |||||
| 28 | 5308002748 | Screw |
|
- | |||||
| 29 | 5308000255 | Door Stop-refrigerator |
|
$ 42.20 | |||||
| 30 | 5308011745 | Screw |
|
$ 10.38 | |||||
| 32 | 3018973 | Adjustible Door Line (2) |
|
- | |||||
| 21A | 5303203263 | Support-rack Lh (2) (non-illustrated) |
|
- | |||||
| 23A | 5303323481 | Support, Rack, Lh (Replaces: 5303017381) |
|
Immediately | $ 14.18 | ||||
| 26A | 5303325990 | Support-rack-rh (non-illustrated) (Replaces: 5303203262) |
|
Immediately | $ 17.01 | ||||
| 26B | 5303203263 | Support-rack-lh (non-illustrated) |
|
- | |||||
| 29A | 5303212491 | Door Stop-freezer (non-illustrated) |
|
- | |||||
| 5A | 5303323481 | Support-rack-lh (2) (non-illustrated) (Replaces: 5303017381) |
|
Immediately | $ 14.18 |
