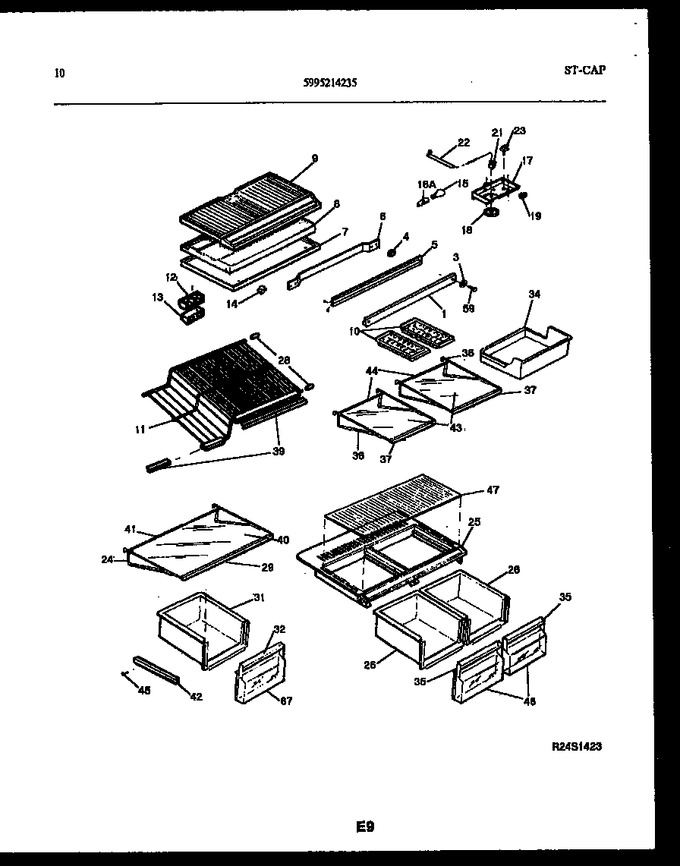

FPW18TPW1 | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
22	3018891	Housing, Cont Cap Tube	Appelez-nous	-
23	215846602	Timer (Replaces: 5300187484)		Immediately	$ 28.20
24	5303282453	Frame-full Shelf, Cantilever	Appelez-nous	-
25	5303207340	Cover-crisper Pan, With Beam, Less Insert			$ 265.80
26	3206438	Pan-crisper (2)		Immediately	$ 227.80
28	3201150	Cap-protector			$ 4.57
29	5303282459	Trim-full Shelf	Appelez-nous	-
31	5303207348	Pan-meat	Appelez-nous	-
32	5303208419	Trim-meat Pan	Appelez-nous	-
34	5303212895	Container, Ice	Appelez-nous	-
35	3206440	Trim-crisper Pan, (2)	Appelez-nous	-
36	5303282452	Frame-half Shelf, Cantilever, (2)	Appelez-nous	-
37	5303282460	Trim-half Shelf, (2)	Appelez-nous	-
39	5303282461	Trim-frzr Shelf, Large	Appelez-nous	-
39	5303272521	Trim-frzr Shelf, Small	Appelez-nous	-
40	5303282446	Shelf-glass, Full Shelf	Appelez-nous	-
41	5303282450	Trim-full Shelf, Rear	Appelez-nous	-
42	3206380	Hanger-meat Pan, Rh	Appelez-nous	-
43	5303282445	Shelf-glass, Half Shelf, (2)	Appelez-nous	-
44	5303282451	Trim-half Shelf, Rear, (2)	Appelez-nous	-
45	08014528	Screw-hanger Mtg, Cr Pan Hd Plask, 8 X 1/2, Meat/deli P			$ 4.31
46	3206441	Front-crisper Pan, Lh	Appelez-nous	-
46	5303208429	Front-crisper Pan, Rh	Appelez-nous	-
47	5303275649	Insert-crisper Cover, Glass	Appelez-nous	-
59	3206134	Screw-hng/mull Mtg,acorn Hx Wsh Hd,10-24(23)x1	Appelez-nous	-
67	5303208420	Front-meat Pan	Appelez-nous	-
23A	5304455649	Screw (Replaces: 5303001259)			$ 17.01
24A	5300170910	Clip-cantilever Shlf (non-illustrated)			$ 2.60
25A	5303208431	Trim-crisper Cover (non-illustrated)	Appelez-nous	-
40A	5303209274	Retainer-glass (non-illustrated)	Appelez-nous	-
42A	3206379	Hanger-meat Pan, Lh (non-illustrated)	Appelez-nous	-
43A	5303209263	Retainer-glass (2) (non-illustrated)	Appelez-nous	-
