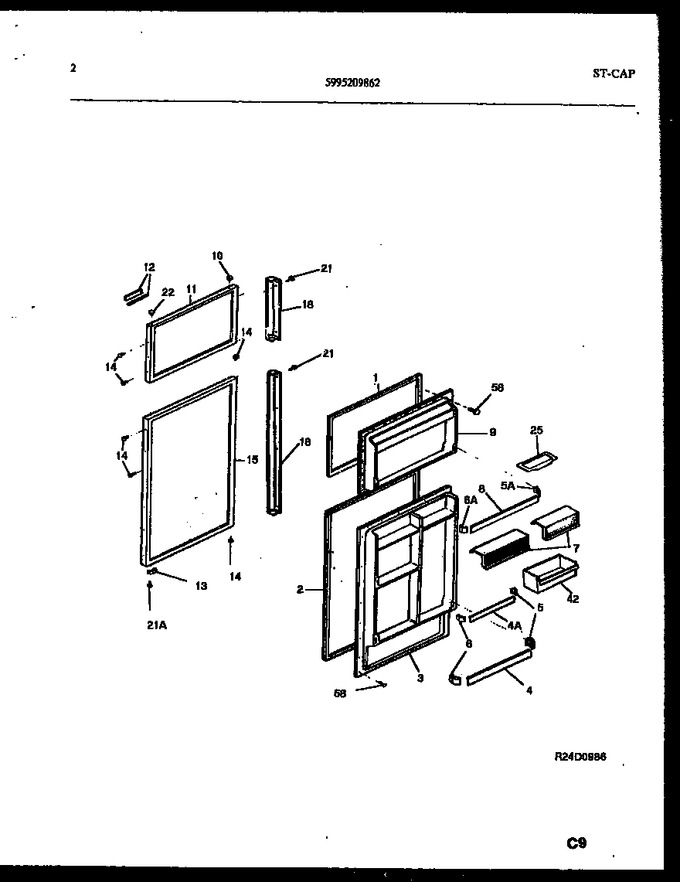

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308017483 | Gasket, Frzr Door, Magnetic |
|
- | |||||
| 2 | 5308017487 | Gasket, Refr Door, Magnetic |
|
- | |||||
| 3 | 5303200596 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 3017420 | Rack, Door |
|
- | |||||
| 5 | 5303325990 | Support-door Rack, Rh, (2) (Replaces: 5303203262) |
|
Immediately | $ 17.01 | ||||
| 6 | 5303203263 | Support-door Rack, Lh, (2) |
|
- | |||||
| 7 | 3018868 | Door-dairy (large) |
|
- | |||||
| 7 | 3018974 | Door-dairy (small) |
|
- | |||||
| 8 | 3017419 | Rack, Door, (2) |
|
- | |||||
| 9 | 3019030 | Panel, Inner Door, Frzr |
|
- | |||||
| 10 | 5303001308 | Button Plug, Almond, Hinge Brg Hole |
|
- | |||||
| 11 | 3916119 | Panel, Frzr Door, Almond |
|
- | |||||
| 12 | 3201581 | Nameplate Assy |
|
- | |||||
| 13 | 5303212491 | Door Stop, Refr |
|
- | |||||
| 14 | 5308000181 | Button Plug, Almond, Handle/dr Stop |
|
- | |||||
| 15 | 5303916625 | Panel-refr Door, Almond |
|
- | |||||
| 18 | 5303272663 | Handle-door, Almond, Refr |
|
- | |||||
| 18 | 5303272795 | Handle, Door, Almond, Frzr |
|
- | |||||
| 21 | 5303272568 | Screw-handle Mtg, Spcl Cr Oval Hd, 10-24(d) X 5/8, Almo |
|
- | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 25 | 5303018743 | Dish, Butter |
|
- | |||||
| 42 | 3018973 | Bin-utility, (3) |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *51365 | 5303007739 | Insulation, Door, Fiberglass, (bulk) |
|
- | |||||
| 13A | 5308000255 | Door Stop, Frzr (non Illustrated) |
|
$ 42.20 | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 | |||||
| 4A | 3017421 | Rack-door |
|
- | |||||
| 5A | 5303323480 | Support-door Rack, Rh, (2) (Replaces: 5303017378) |
|
$ 14.18 | |||||
| 6A | 5303323481 | Support-door Rack, Lh, (2) (Replaces: 5303017381) |
|
Immediately | $ 14.18 |
