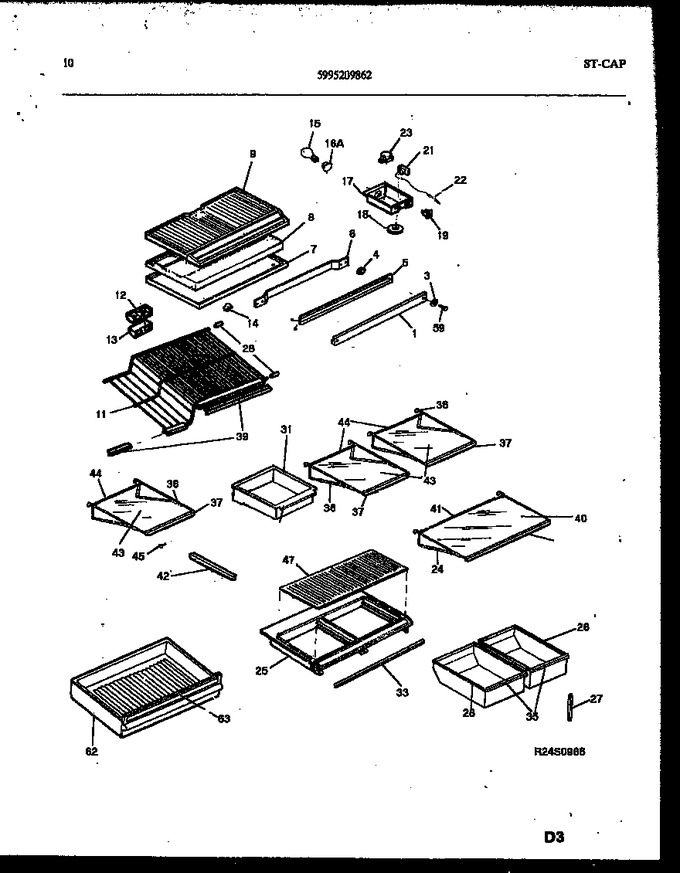

Diagram #	Part Number	Description	Availability	Ships	Price
26	3200571	Pan-crisper, Rh	Appelez-nous	-
27	5303206507	Support, Crisper Cvr, Adjustable	Appelez-nous	-
28	3201150	Cap-protector			$ 4.57
29	5303272550	Trim-full Shelf, Snap-on	Appelez-nous	-
31	3018987	Pan, Meat	Appelez-nous	-
32	5303272530	Trim, Meat Pan	Appelez-nous	-
33	5303200329	Gasket - Crisper Cover	Appelez-nous	-
35	5303272523	Trim, Crisper Pan, Lh	Appelez-nous	-
35	5303272529	Trim, Crisper Pan, Rh	Appelez-nous	-
36	5303209270	Frame-half Shelf	Appelez-nous	-
36	5303209266	Frame-half Shelf, (2)	Appelez-nous	-
37	5303272543	Trim-half Shelf, Snap-on, Meat Kpr	Appelez-nous	-
37	5303272797	Trim-half Shelf, Snap-on, (2)	Appelez-nous	-
39	5303272521	Trim-frzr Shelf, Small	Appelez-nous	-
39	5303272796	Trim-frzr Shelf, Large	Appelez-nous	-
40	5303211964	Shelf-glass, Full Shelf	Appelez-nous	-
41	5303211962	Trim-full Shelf, Rear	Appelez-nous	-
42	5303210016	Hanger, Meat Pan, Lh			$ 134.09
43	5303211959	Shelf-glass, Half Shelf, (2)	Appelez-nous	-
43	5303211967	Shelf-glass, Meat Keeper	Appelez-nous	-
44	5303211828	Trim-half Shelf, Rear, (2)	Appelez-nous	-
44	5303211830	Trim-half Shelf, Rear, (2)	Appelez-nous	-
45	08014528	Screw-hanger Mtg, Cr Pan Hd Plask, 8 X 1/2, Meat/deli P			$ 4.31
47	5303211968	Insert-crisper Cover, Glass	Appelez-nous	-
59	5308012258	Screw			$ 2.25
62	3200584	Tray, Deli	Appelez-nous	-
63	5303272557	Trim-deli Tray	Appelez-nous	-
*51377	5303200580	Control-humidity	Appelez-nous	-
40A	5303209263	Retainer-glass (2) (non-illustrated)	Appelez-nous	-
41A	5303211351	Lock-rear Trim (non-illustrated)	Appelez-nous	-
42A	5303210017	Hanger, Meat Pan, Rh (non Illustrated)			$ 107.89
62A	3200589	Divider-deli Tray (non-illustrated)	Appelez-nous	-
