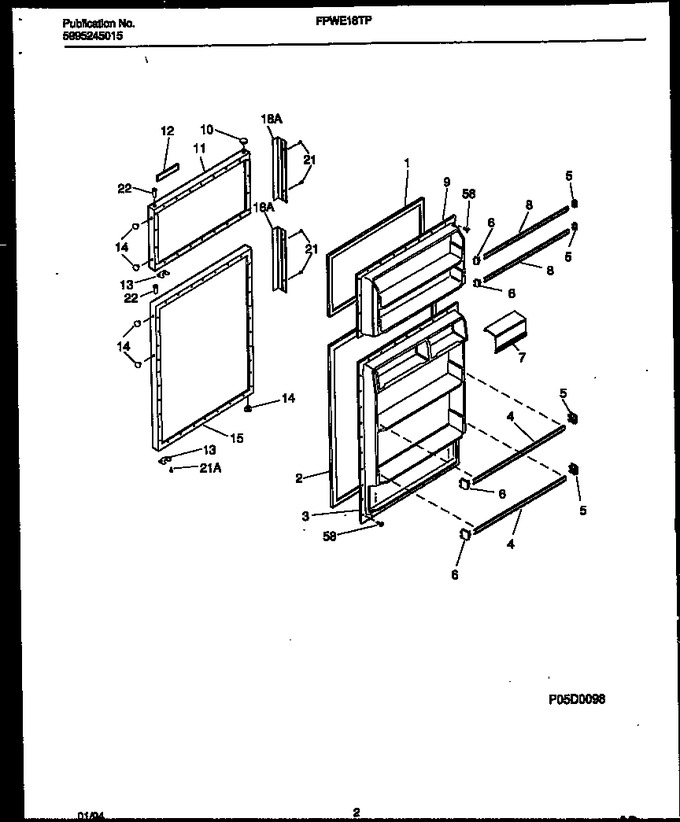

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215608906 | Gasket-frzr Door, Magnetic, Almond |
|
- | |||||
| 2 | 5303207345 | Gasket-refr Door, Magnetic, Almond (Replaces: 5303288239) |
|
Immediately | $ 188.19 | ||||
| 3 | 5303271441 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 5303207347 | Rack-door, (2) |
|
- | |||||
| 5 | 5303207230 | Support - Door Rack, Rh |
|
Immediately | $ 17.21 | ||||
| 6 | 5303207229 | Support - Door Rack, Lh |
|
$ 17.59 | |||||
| 7 | 215299200 | Door-dairy, Rh |
|
- | |||||
| 7 | 215299300 | Door-dairy, Lh |
|
- | |||||
| 8 | 5303208583 | Rack-door, (2) |
|
- | |||||
| 9 | 5303207343 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5303001308 | Plug-button, Almond, Hinge Brg Hole |
|
- | |||||
| 11 | 5303916901 | Panel-frzr Door, Almond, W/ Insulation |
|
- | |||||
| 12 | 5303275752 | Nameplate Assy, Almond |
|
- | |||||
| 13 | 5308000255 | Door Stop |
|
$ 42.20 | |||||
| 14 | 5308000181 | Plug-button, Almond, Handle/dr Stop |
|
- | |||||
| 15 | 5303916903 | Panel-refr Door, Almond |
|
- | |||||
| 21 | 5303272568 | Screw-handle Mtg, Spcl Cr Oval Hd, 10-24(d) X 5/8, Almo |
|
- | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *91786 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 18A | 5303272563 | Handle-door, 16.75`` Long, Almond |
|
- | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 | |||||
| 7A | 5303207234 | Trim-dairy Door (non-illustrated) |
|
- |
