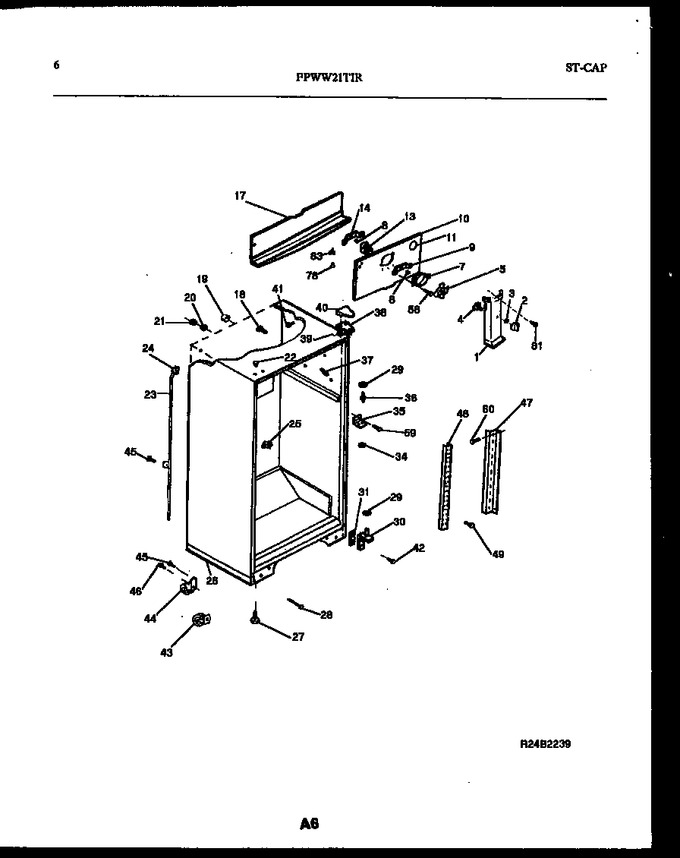

FPWW21TIRW0 | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	5303275708	Cover-fan	Appelez-nous	-
2	5303275839	Knob-damper Control	Appelez-nous	-
3	5303001028	Nut, Push	Appelez-nous	-
4	5303001331	Damper-fan Cover			$ 31.71
5	5308000010	Fan Blade		Immediately	$ 49.03
7	5308000124	Ring-fan Orifice			$ 53.58
8	5300157666	Bushing - Motor Mtg, (2)	Appelez-nous	-
9	5303205118	Bracket-motor Mtg, Front	Appelez-nous	-
10	5308013665	Cover-evap Coil	Appelez-nous	-
11	5303208309	Plug-hole, Factory Test			$ 45.50
13	5300158289	Motor-fan (Replaces: 5303275816)		Immediately	$ 149.94
14	5303205119	Bracket-motor Mtg, Rear	Appelez-nous	-
17	5303001470	Trough-drain	Appelez-nous	-
18	5308000097	Support, Evap Cover, (2)	Appelez-nous	-
19	5303001198	Tube-rubber	Appelez-nous	-
20	5303001286	Ferrule-inner	Appelez-nous	-
21	5303001287	Ferrule-outer	Appelez-nous	-
22	5303001388	Plug-button, White, Upr Hinge Holes			$ 2.60
23	5303210377	Tube-drain, W/seal Ring			$ 109.31
24	5303207353	Seal Ring, Drain Tube			$ 6.81
25	5308000056	Spout-drain Tube			$ 11.66
26	5303212487	Base-cabinet	Appelez-nous	-
27	5303212922	Screw-leveling			$ 10.71
28	5303271412	Bolt, Roller Adj. Indt Hx Hd Sems, 1/4, 28 X 2, 3/4, (2)			$ 37.64
29	5308000007	Washer, .34 X .62 X .05, Nylon	Appelez-nous	-
30	5303212489	Bracket-lower Hinge, W/ Hinge Pin	Appelez-nous	-
31	5303212488	Shim-lower Hinge			$ 5.25
10A	5303209636	Screw-coil Cover, Phl Hd Spc Trus, 8-15a X 5/8 (non-illustrated)	Appelez-nous	-
25A	5303001361	Pin, Push, Drain Spout (2) (non-illustrated)	Appelez-nous	-
30A	5303212596	Tapping Plate/gusset, Lh (non-illustrated)	Appelez-nous	-
30B	5303212597	Tapping Plate/gusset, Rh (non-illustrated)	Appelez-nous	-
