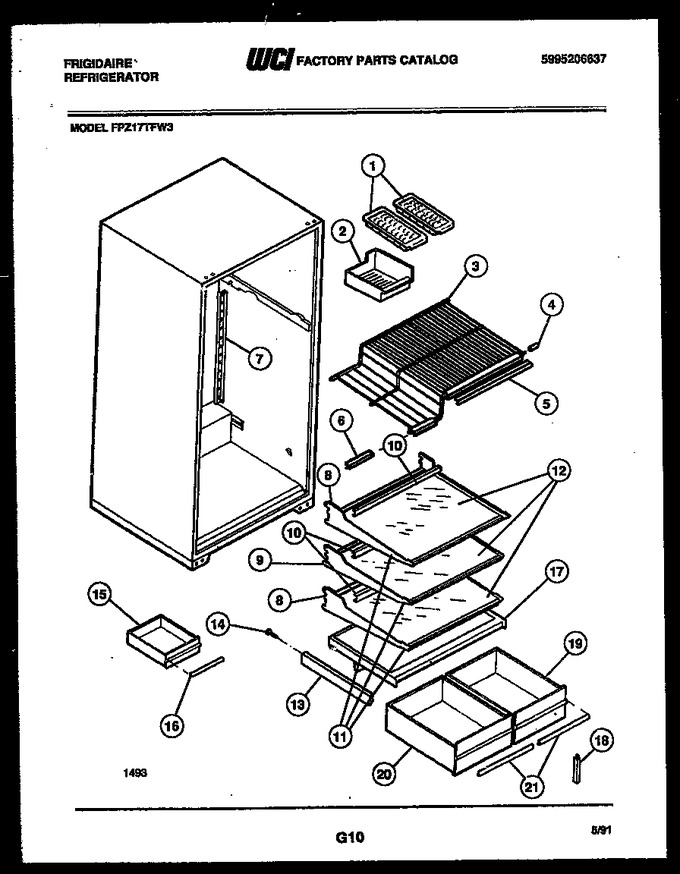

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 01121808 | Ice Tray, Plastic |
|
- | |||||
| 2 | 5303212895 | Ice Container |
|
- | |||||
| 3 | 08009859 | Shelf-freezer |
|
- | |||||
| 4 | 3201150 | End Cap (2) |
|
$ 4.57 | |||||
| 5 | 3018897 | Trim-long |
|
- | |||||
| 6 | 3017427 | Trim-short |
|
- | |||||
| 7 | 5308000302 | Channel-shelf Mtg (2) |
|
- | |||||
| 8 | 3203935 | Frame-shelf (2) |
|
- | |||||
| 9 | 3203936 | Frame-meat Kpr Shelf |
|
- | |||||
| 10 | 3203931 | Trim/retainer-rear (3) |
|
- | |||||
| 11 | 5303018883 | Trim-front Shelf (3) |
|
- | |||||
| 12 | 3018882 | Glass-shelf (3) |
|
- | |||||
| 13 | 5303210016 | Hanger, Meat Pan, Lh |
|
$ 134.09 | |||||
| 14 | 08014528 | Screw-hanger Mtg (2) |
|
$ 4.31 | |||||
| 14 | 5308009773 | Roller Assy, Rear, (2) |
|
- | |||||
| 15 | 3018875 | Pan, Meat |
|
- | |||||
| 16 | 3017424 | Trim, Meat Pan |
|
- | |||||
| 17 | 5303018892 | Cover-storage Pan |
|
- | |||||
| 18 | 5303206508 | Support-cover |
|
- | |||||
| 19 | 3018872 | Pan-fresh Seal Rh |
|
- | |||||
| 20 | 3018873 | Pan-fruit Lh |
|
- | |||||
| 21 | 3017423 | Trim-pan (2) |
|
- | |||||
| 11A | 3018884 | Retainer-shelf Front (2) (non-illustrated) |
|
- | |||||
| 11B | 3203933 | Retainer-m/k Shelf Front (non-illustrated) |
|
- | |||||
| 12A | 3200901 | Side Rail-glass Sppt (3) (non-illustrated) |
|
- | |||||
| 13A | 5303210017 | Hanger, Meat Pan, Rh (non Illustrated) |
|
$ 107.89 | |||||
| 17A | 5308009647 | Gasket-cover Rh (non-illustrated) |
|
- | |||||
| 7A | 5308010253 | Screw-channel Mtg (6) (non-illustrated) |
|
- |
