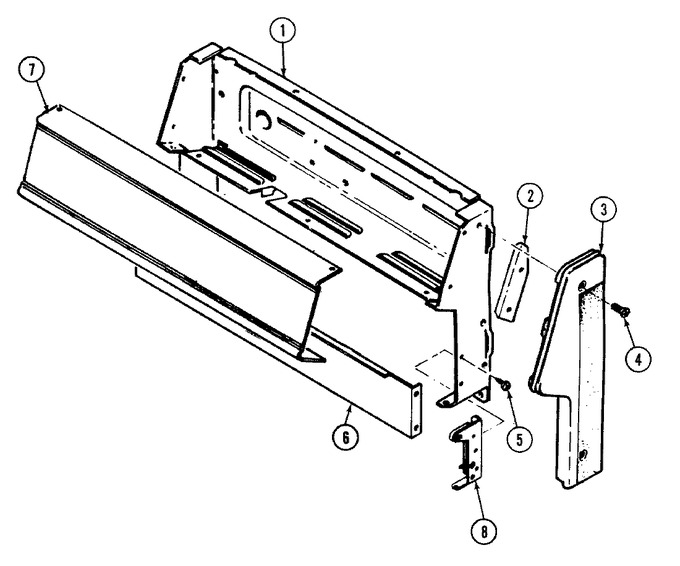

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4001F097-51 | Housing, Control Panel | 01 |
|
- | ||||
| 2 | 3807F449-45 | Support, Control Pnl (rt) | 01 |
|
- | ||||
| 2 | 3807F450-45 | Support, Control Pnl (lt) | 01 |
|
- | ||||
| 3 | 7726P051-60 | End Cap (rt-blk) | 01 |
|
- | ||||
| 4 | 7101P032-60 | Screw | 01 |
|
- | ||||
| 5 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 01 |
|
Immediately | $ 12.62 | |||
| 6 | 3604F170-09 | Shield, Flue | 01 |
|
- | ||||
| 7 | 2601F405-84 | Panel, Control (alm) | 01 |
|
- | ||||
| 8 | 3418A088-34 | Hinge, Main Top (lt) | 01 |
|
- | ||||
| 8 | 3418A087-34 | Hinge, Main Top (rt) | 01 |
|
- | ||||
| 9 | 8113P042-60 | Manual, Use & Care | 01 |
|
- | ||||
| 10 | 16000329 | Guide, Quick Ref. - Magic Chef | 01 |
|
- |
