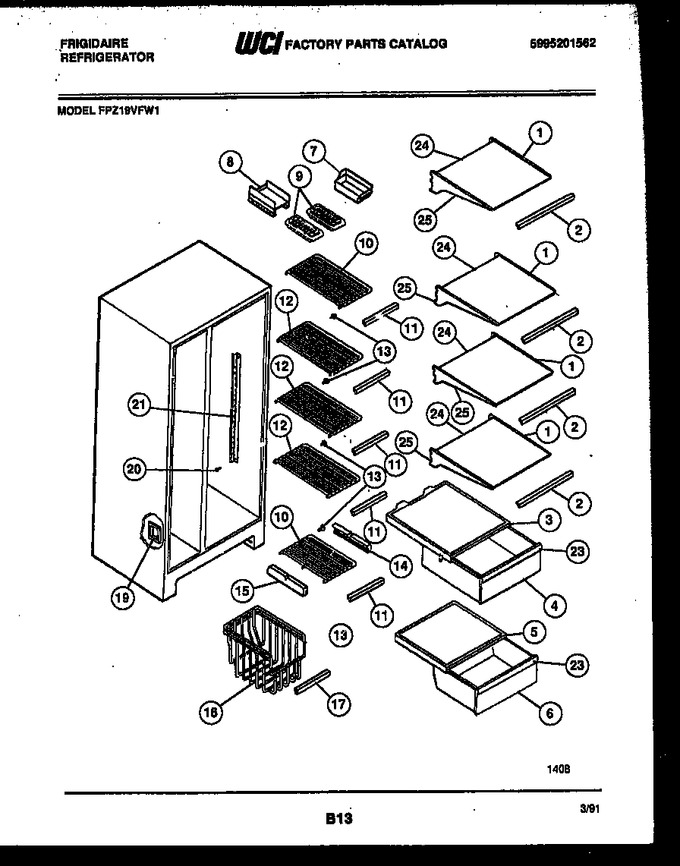

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303271661		Shelf-refrigerator (4)		Appelez-nous	-
2	3018642		Trim-shelf (4)		Appelez-nous	-
3	3018647		Cover-crisper Upper		Appelez-nous	-
4	3018648		Pan-storage Upper		Appelez-nous	-
5	3018649		Cover-crisper Lower		Appelez-nous	-
6	3018650		Pan-storage Lower		Appelez-nous	-
7	5303212895		Container, Ice		Appelez-nous	-
8	08009824		Compartment-ice Tray		Appelez-nous	-
9	01121808		Ice Tray, Plastic		Appelez-nous	-
10	08000905		Shelf-freezer (2)		Appelez-nous	-
11	3018646		Trim-shelf (5)		Appelez-nous	-
12	08000906		Shelf-freezer (3)		Appelez-nous	-
13	5304509705		Grommet-shelf Mounting (10)   (Replaces: 5303001609)				$ 10.01
14	5303001098		Hanger, Basket, Rh		Appelez-nous	-
15	5303001099		Hanger, Basket, Lh		Appelez-nous	-
16	5308017594		Basket-sliding		Appelez-nous	-
17	3018651		Trim-basket		Appelez-nous	-
19	5303271652		Ferrule-outer		Appelez-nous	-
20	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
21	5308002744		Channel-shelf Mounting (2)		Appelez-nous	-
23	3018750		Trim-pan (2)		Appelez-nous	-
24	5303271657		Trim-rear-snap On Shelf		Appelez-nous	-
25	5303271662		Shelf-frame		Appelez-nous	-
19A	5303271653		Ferrule-inner				$ 20.27
1A	5303209742		Glass Retainer		Appelez-nous	-
3A	3018752		Gasket		Appelez-nous	-
8A	5308010253		Screw-8-15 X 7/8 (2) (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
