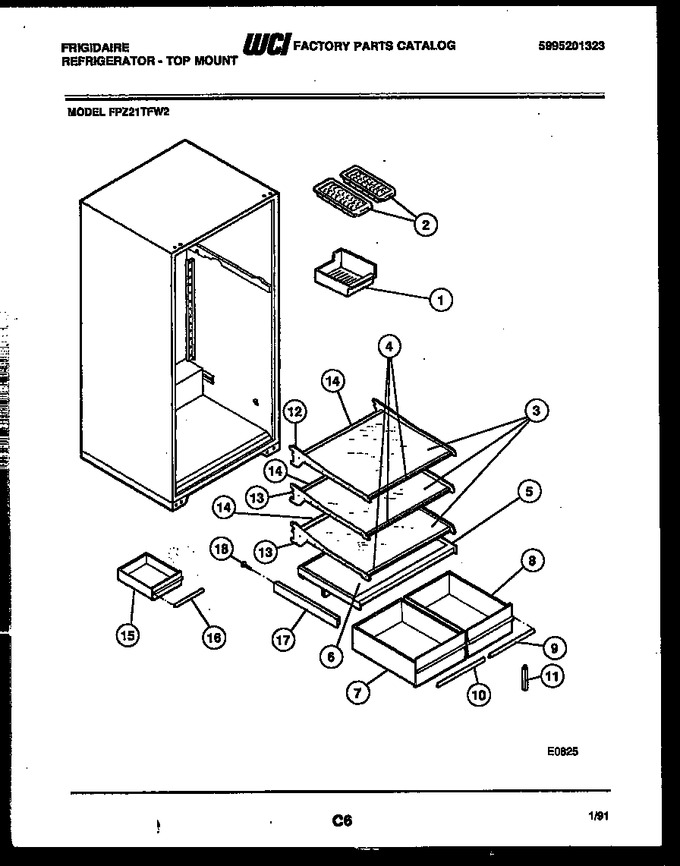

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303212895 | Ice Container |
|
- | |||||
| 2 | 01121808 | Ice Tray, Plastic |
|
- | |||||
| 3 | 3200614 | Glass-shelf (3) |
|
- | |||||
| 4 | 3018732 | Trim-front (3) |
|
- | |||||
| 5 | 5308019035 | Cover-crisper |
|
- | |||||
| 6 | 3200389 | Glass-cover |
|
- | |||||
| 7 | 3018873 | Pan, Crisper, Lh |
|
- | |||||
| 8 | 3018982 | Pan, Crisper, Rh |
|
- | |||||
| 9 | 3017422 | Trim, Pan, Rh |
|
- | |||||
| 10 | 3017423 | Trim, Pan, Lh |
|
- | |||||
| 11 | 5303206507 | Adj Support-crisper Cover |
|
- | |||||
| 12 | 3203094 | Frame-cantilever Meat Keeper |
|
- | |||||
| 13 | 3200616 | Frame-cantilever (2) |
|
- | |||||
| 14 | 3203088 | Retainer-rear |
|
- | |||||
| 15 | 3018987 | Pan-snack |
|
- | |||||
| 16 | 3018986 | Trim-snack Pan |
|
- | |||||
| 17 | 5303210016 | Hanger, Meat Pan, Lh |
|
$ 134.09 | |||||
| 18 | 08014528 | Screw, Hanger (2) |
|
$ 4.31 | |||||
| 13A | 3018724 | Retainer-glass (2) (non-illustrated) |
|
- | |||||
| 13B | 3203087 | Retainer-glass, Snack Pan (non-illustrated) |
|
- | |||||
| 17A | 5303210017 | Hanger, Meat Pan, Rh (non Illustrated) |
|
$ 107.89 | |||||
| 3A | 3200901 | Support-shelf Glass (4) (non-illustrated) |
|
- | |||||
| 5A | 3018984 | Trim, Crisper Cover (non Illustrated) |
|
- | |||||
| 6A | 5303200329 | Gasket-crisper Cvr (non-illustrated) |
|
- |
