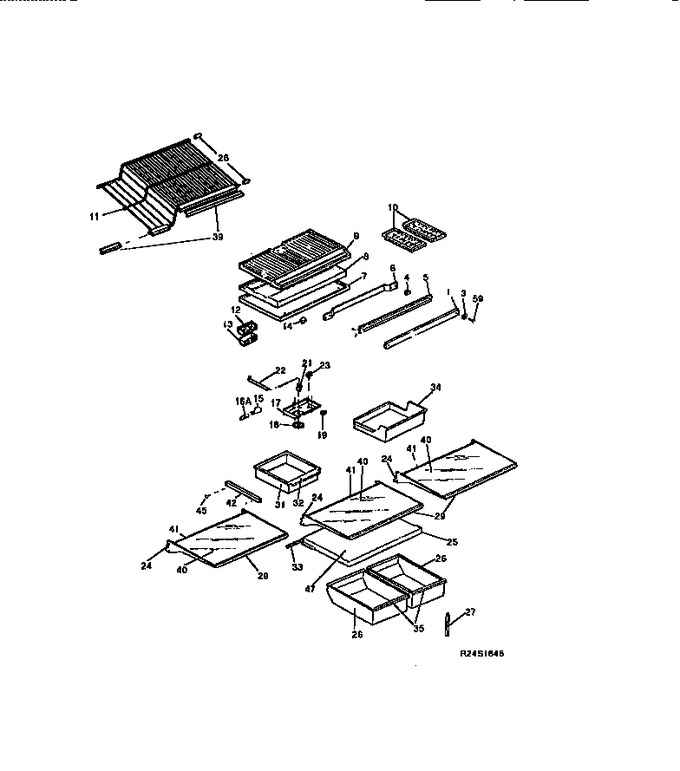

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303200370		Mullion, Almond		Appelez-nous	-
3	5303206754		Washer No. 10 Flat, 7/32 X 7/16 Od, Steel		Appelez-nous	-
4	5303200464		Spacer, Mullion Mtg, (2)		Appelez-nous	-
5	5303210351		Heater-mullion		Appelez-nous	-
6	5308010008		Strap-mullion Mtg		Appelez-nous	-
7	5303001380		Screw		Appelez-nous	-
7	3019038		Top Panel-refr		Appelez-nous	-
8	3019040		Harness-wiring, Control/divider (non-illustrated)		Appelez-nous	-
8	3205266		Protector-edge (non-illustrated)				$ 80.09
8	5303019039		Divider, Styrofoam		Appelez-nous	-
9	5303210641		Bottom Panel-frzr		Appelez-nous	-
10	01121808		Ice Tray, Plastic		Appelez-nous	-
11	3019033		Shelf, Freezer		Appelez-nous	-
12	5308014667		Deflector, Air		Appelez-nous	-
12	5303001449		Seal-air Deflector (non-illustrated)				$ 2.12
13	5303001448		Cover-air Deflector		Appelez-nous	-
13	5303200590		Extension, Air Deflector, With Insulation (non Illustra		Appelez-nous	-
14	5309918806		Switch, Light			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp		Appelez-nous	-
17	3018895		Box, Control		Appelez-nous	-
18	3018893		Knob, Temp Control		Appelez-nous	-
19	5303018896		Switch, Energy Saver		Appelez-nous	-
21	5303018894		Control-temperature		Appelez-nous	-
21	5303001260		Screw				$ 6.73
22	3018891		Housing, Cont Cap Tube		Appelez-nous	-
23	215846602		Timer   (Replaces: 5300187484)			Immediately	$ 28.20
23	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
24	5303211349		Frame, Meat Kpr Shlf, Cantilever		Appelez-nous	-
24	5303209276		Frame, Full Shelf, Cantilever		Appelez-nous	-
25	3018984		Trim, Crisper Cover (non Illustrated)		Appelez-nous	-
25	5303019035		Cover, Crisper Pan		Appelez-nous	-
26	3018982		Pan, Crisper, Rh		Appelez-nous	-
26	3018873		Pan, Crisper, Lh		Appelez-nous	-
27	5303206507		Support, Crisper Cvr, Adjustable		Appelez-nous	-
28	3201150		Cap-protector				$ 4.57
29	5303272820		Trim, Full Shelf, (3)		Appelez-nous	-
29	5303209274		Retainer-glass (non-illustrated)		Appelez-nous	-
31	3018987		Pan, Meat		Appelez-nous	-
32	5303272530		Trim, Meat Pan		Appelez-nous	-
33	5303200329		Gasket, Crisper Cvr		Appelez-nous	-
34	5303212895		Container, Ice		Appelez-nous	-
35	5303272523		Trim, Crisper Pan, Lh		Appelez-nous	-
35	5303272529		Trim, Crisper Pan, Rh		Appelez-nous	-
39	5303272796		Trim, Frzr Shelf, Long		Appelez-nous	-
39	5303272521		Trim, Frzr Shelf, Short		Appelez-nous	-
40	5303272821		Shelf, Glass, Full Shelf, (3)		Appelez-nous	-
41	5303210045		Trim,full Shelf (snap,on Rear)		Appelez-nous	-
42	5303210016		Hanger, Meat Pan, Lh				$ 134.09
42	5303210017		Hanger, Meat Pan, Rh (non Illustrated)				$ 107.89
45	08014528		Screw - Hanger Mtg, Cr Pan Hd Plask, 8 X 1/2, Meat/deli				$ 4.31
47	5303211968		Insert, Crisper Cvr, Glass		Appelez-nous	-
59	5308012258		Screw				$ 2.25
*72282	5303211351		Lock, Rear Trim		Appelez-nous	-
*72283	5300170910		Clip-cantilevr Shlf				$ 2.60
*72285	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
16A	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
