SELECT A DIAGRAM

02 - Door


03 - Cabinet


04 - Shelves


05 - Cooling System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308017483		Gasket, Frzr Door, Magnetic		Appelez-nous	-
2	5308017487		Gasket, Refr Door, Magnetic		Appelez-nous	-
3	5303279802		Panel, Inner Door, Refr		Appelez-nous	-
5	5303323480		Support, Door Rack, Rh   (Replaces: 5303017378)				$ 14.18
6	5303323481		Support, Door Rack, Lh   (Replaces: 5303017381)			Immediately	$ 14.18
7	5303284385		Door, Dairy, Lh		Appelez-nous	-
7	5303284384		Door, Dairy, Rh		Appelez-nous	-
8	3017419		Rack, Door, (2)		Appelez-nous	-
9	3019030		Panel, Inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303916115		Panel, Frzr Door, White		Appelez-nous	-
12	5303275751		Nameplate Assy, White		Appelez-nous	-
13	5303212491		Door Stop, Refr		Appelez-nous	-
13	5308000255		Door Stop, Frzr (non Illustrated)				$ 42.20
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
15	5303275660		Brace, Cross (non Illustrated)		Appelez-nous	-
15	5303916952		Panel, Refr Door, White		Appelez-nous	-
18	5303272661		Handle, Door, White		Appelez-nous	-
21	5303272566		Screw, Handle Mtg, Spcl Cr Oval Hd, 10, 24(d) X 5/8, Wh		Appelez-nous	-
22	5308012007		Bearing-hinge		Appelez-nous	-
26	5303018635		Tray, Egg		Appelez-nous	-
27	5303279907		Snugger, Door Rack		Appelez-nous	-
49	5303284383		Bin, Door, Gallon, (4)		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
61	5308017047		Nut, Self-threading, 1/8		Appelez-nous	-
62	5303279801		Divider, Dairy		Appelez-nous	-
*72280	5303007739		Insulation, Door, Fiberglass, (bulk)		Appelez-nous	-
18A	5303272793		Handle, Door, White, Frzr		Appelez-nous	-
21A	5308011745		Screw				$ 10.38

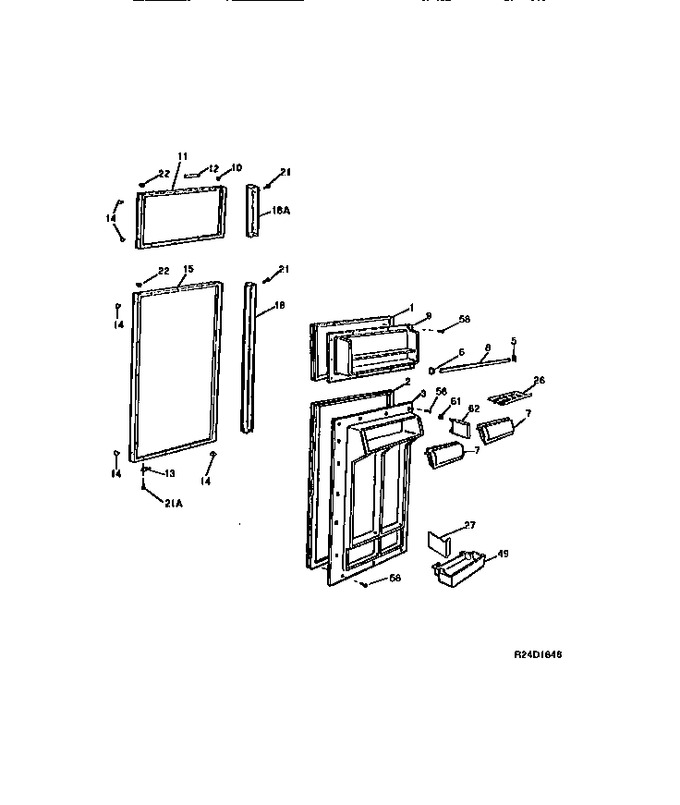

    View Diagram in Separate Window       Print Part List
