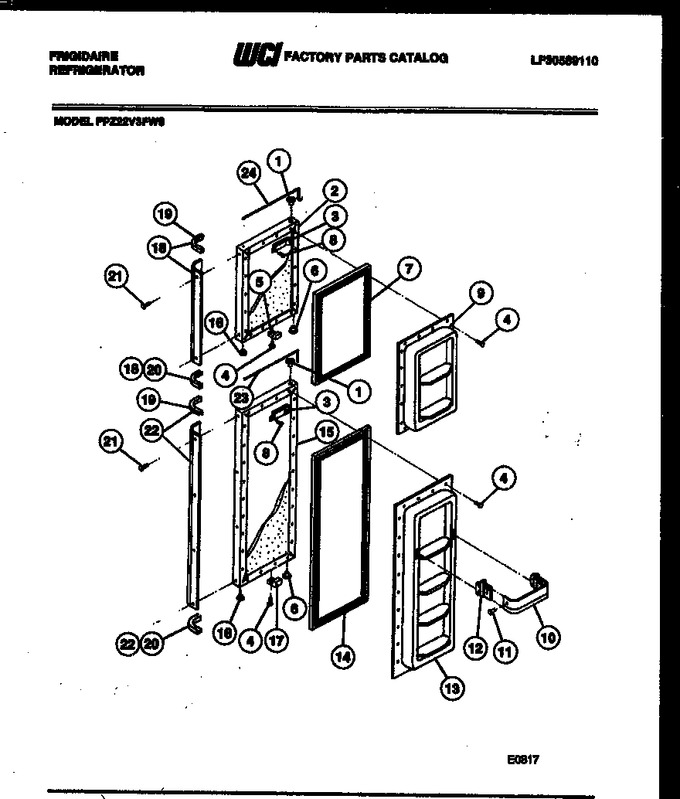

02 - Refrigerator Door Parts


03 - Freezer Door Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Refrigerator Control Assembly, Damp


07 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08012008		Bearing-hinge (2)		Appelez-nous	-
2	08009962		Outer Panel-white		Appelez-nous	-
3	3200272		Door Closer (2)		Appelez-nous	-
4	08002748		Screw		Appelez-nous	-
5	08002802		Bumper-light Switch		Appelez-nous	-
6	08012007		Bearing-hinge		Appelez-nous	-
7	3200274		Gasket-upper Door		Appelez-nous	-
8	08000839		Screw (2)		Appelez-nous	-
9	3018625		Inner Panel-upper		Appelez-nous	-
10	3018626		Rack-door (6)		Appelez-nous	-
11	08002750		Rivet-oval Hd (12)		Appelez-nous	-
12	3200542		Support Ls (6)		Appelez-nous	-
13	3200677		Inner Panel-lower		Appelez-nous	-
14	3200275		Gasket-lower Door		Appelez-nous	-
15	08009957		Outer Panel-white		Appelez-nous	-
16	08002751		Button Plug (2)		Appelez-nous	-
17	08000790		Bumper-light Switch		Appelez-nous	-
18	3201858		Handle Assy-upper Door		Appelez-nous	-
19	08010239		End Cap-top (2)		Appelez-nous	-
20	08010238		End Cap-bottom (2)		Appelez-nous	-
21	08013645		Screw (6)		Appelez-nous	-
22	3201859		Handle Assy-lower Door		Appelez-nous	-
23	3018629		Trim-lower Door		Appelez-nous	-
24	3018630		Trim-upper Door		Appelez-nous	-
12A	3200543		Support Rs (6) (non-illustrated)		Appelez-nous	-
