SELECT A DIAGRAM

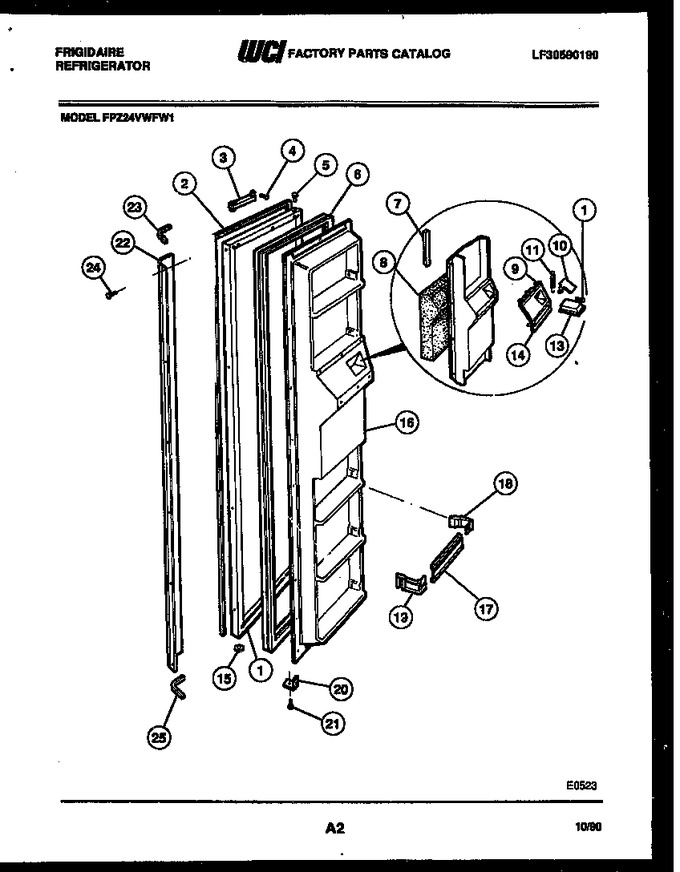

02 - Freezer Door Parts


03 - Refrigerator Door Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Refrigerator Control Assembly, Damp


07 - Ice Door, Dispenser And Water Tanks


08 - Ice Dispenser


09 - Ice Maker And Installation Parts


10 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308017637		Freezer - Door - Almond		Appelez-nous	-
2	5303200715		Trim-freezer Door		Appelez-nous	-
3	5303200272		Door Closer		Appelez-nous	-
4	3001020		Screw - Closer Mounting		Appelez-nous	-
5	5303001022		Bearing-upper Hinge		Appelez-nous	-
6	5303200717		Gasket - Freezer Door		Appelez-nous	-
7	5303001046		Shield-wiring		Appelez-nous	-
8	5308017045		Insulation-housing		Appelez-nous	-
9	5303001048		Pin-ice Door Hinge		Appelez-nous	-
10	5303017828		Flipper-ice Door		Appelez-nous	-
11	5308010300		Spring-flipper				$ 36.91
12	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
13	5303209287		Ice Door				$ 7.14
14	5303017830		Cover - Door Panel Trim		Appelez-nous	-
15	5308010308		Bushing-lower Hinge		Appelez-nous	-
16	3200762		Panel-inner Door		Appelez-nous	-
17	5303206712		Door Rack (5)		Appelez-nous	-
18	5303206719		Support-rh (5)		Appelez-nous	-
19	5303206605		Support-lh (5)		Appelez-nous	-
20	5308000790		Bumper, Light Switch				$ 3.86
21	218843801		Screw   (Replaces: 5303001001)				$ 14.41
22	3201857		Handle - Assembly - Freezer Door - W/ Trim - Includes It		Appelez-nous	-
23	5308010238		End Cap-top		Appelez-nous	-
24	5308013645		Screw-handle (6)		Appelez-nous	-
25	5308010239		End Cap-bottom		Appelez-nous	-
*37652	5303007739		Insulation, Bulk		Appelez-nous	-
14A	5308017047		Push Nut (6) (non-illustrated)		Appelez-nous	-
15A	5308000839		Screw (non-illustrated)		Appelez-nous	-
16A	218843801		Screw   (Replaces: 5303001001)				$ 14.41
1A	5315230801		Door Plug-bottom (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
