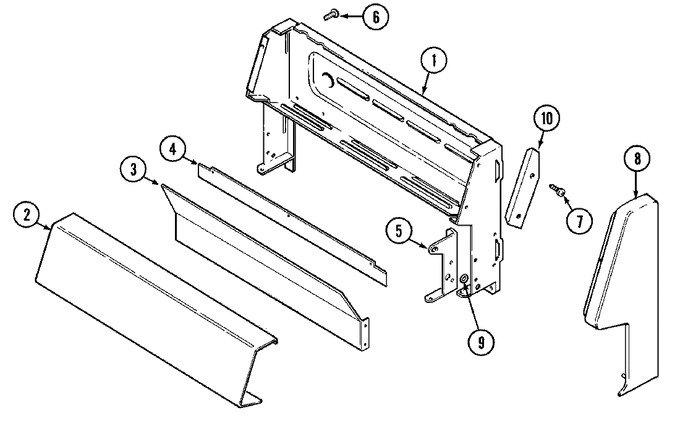

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4005F448-45 | Cover, Wire | 10 |
|
- | ||||
| 1 | 4001F091-51 | Housing, Control Panel | 10 |
|
- | ||||
| 2 | 2601F405-81 | Panel, Control (wht) | 10 |
|
- | ||||
| 3 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 3 | 3604F188-09 | Shield, Flue | 10 |
|
- | ||||
| 4 | 8036P003-60 | Shield, Sight | 10 |
|
- | ||||
| 4 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 5 | 3418D097-60 | Hinge, Main Top (lt) | 10 |
|
- | ||||
| 5 | 3418D098-60 | Hinge, Main Top (rt) | 10 |
|
- | ||||
| 5 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 5 | 8114P348-60 | Cover, Hinge Support | 10 |
|
- | ||||
| 6 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 7 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 10 |
|
$ 15.94 | ||||
| 7 | 7101P317-60 | Screw | 10 |
|
- | ||||
| 8 | 7726P052-60 | End Cap (lt-blk) | 10 |
|
- | ||||
| 8 | 7726P051-60 | End Cap (rt-blk) | 10 |
|
- | ||||
| 9 | WP3195558 | Nut, Speed (Replaces: 7103P044-60) | 10 |
|
$ 7.68 | ||||
| 10 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | 3807F449-45 | Support, Control Pnl (rt) | 10 |
|
- | ||||
| 10 | 3807F450-45 | Support, Control Pnl (lt) | 10 |
|
- | ||||
| 11 | 8113P042-60 | Manual, Use & Care | 10 |
|
- | ||||
| 11 | 16000329 | Guide, Quick Ref. - Magic Chef | 10 |
|
- |
