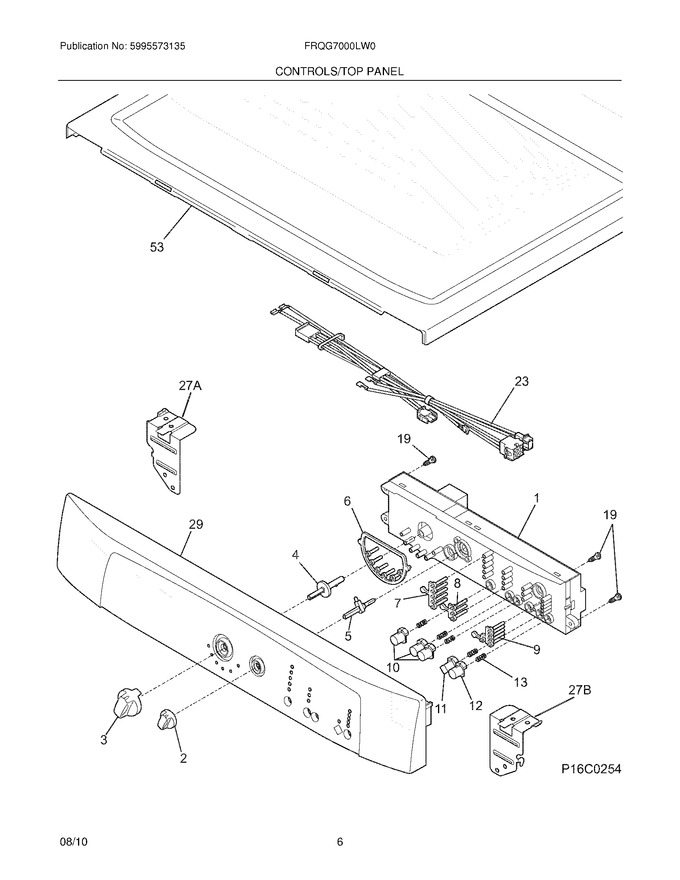

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	134432000		Knob,function				$ 43.42
3	134431800		Knob,program				$ 43.10
4	134347700		Pin,program Knob				$ 19.74
5	134347300		Pin,function Knob				$ 11.60
6	134447600		Light Pipe,array ,9 Curved Prgm.		Appelez-nous	-
7	134429100		Light Pipe,array ,1 Row Of 5				$ 130.57
8	134429200		Light Pipe,array ,2 Row Of 4				$ 12.97
9	134429400		Light Pipe,array ,4 Start Group				$ 13.39
10	134385100		Push Button,function				$ 13.76
11	134385201		Push Button,start				$ 13.70
12	134385301		Push Button,pause				$ 32.97
13	134349400		Spring,push Button				$ 9.14
19	134402900		Screw,phillips ,6-19 X 0.650				$ 29.77
22	134910200		Harness,control				$ 118.55
29	137345210		Panel,control Console		Appelez-nous	-
53	137371700		Panel,work Top ,white				$ 270.11
27A	134710900		Bracket,control Panel ,left Hand ,mounting				$ 21.27
27B	134711000		Bracket,control Panel ,right Hand ,mounting				$ 23.63
F1	137070600		Control Board,pc ,with Housing		Appelez-nous	-
F23	134710300		Harness,wire		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
