SELECT A DIAGRAM
02 - Freezer Door
03 - Refrigerator Door
04 - Cabinet
05 - Shelves

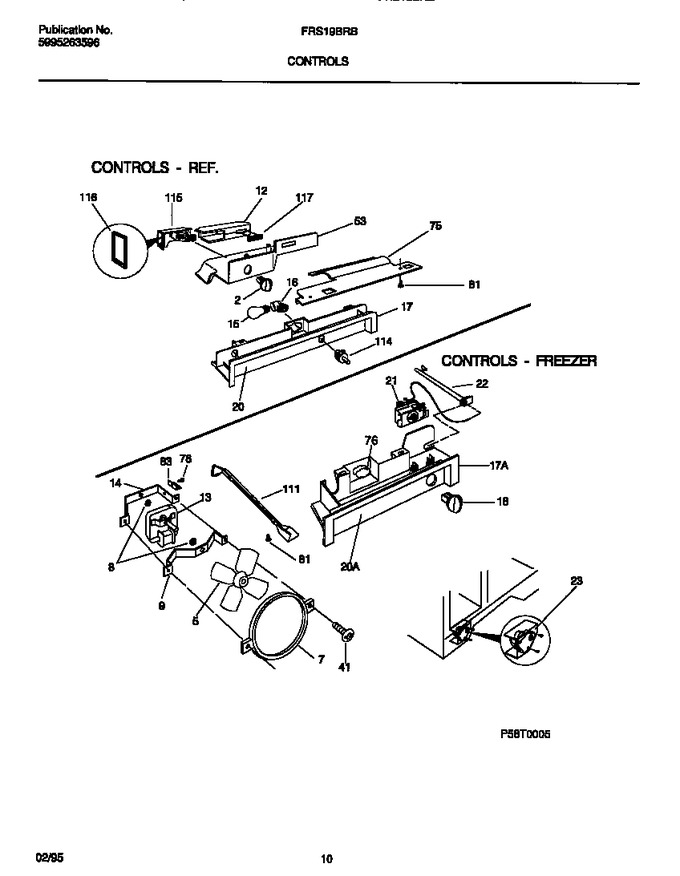

06 - Controls
07 - System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 215028602 | Knob-damper Control |
|
- | |||||
| 5 | 5308000010 | Fan Blade |
|
Immediately | $ 49.03 | ||||
| 7 | 5308000124 | Ring-fan Orifice |
|
$ 53.58 | |||||
| 8 | 5300157666 | Bushing - Motor Mtg, (2) |
|
- | |||||
| 9 | 5303205118 | Bracket-motor Mtg, Front |
|
- | |||||
| 12 | 215901100 | Diffuser-air |
|
- | |||||
| 13 | 215348100 | Motor-evap Fan |
|
- | |||||
| 13 | 215474201 | Washer, ``slinger``, Nylon, Evap Fan Shaft (not Illustrate |
|
Immediately | $ 18.43 | ||||
| 14 | 5303205119 | Bracket-motor Mtg, Rear |
|
- | |||||
| 15 | 5303001179 | Light Bulb/lamp,40 W |
|
- | |||||
| 16 | 241559801 | Socket-light/lamp (Replaces: 5303289050) |
|
$ 72.68 | |||||
| 17 | 5303296808 | Box-control, Refr |
|
- | |||||
| 18 | 215051002 | Knob, Temp Control |
|
- | |||||
| 20 | 5303296801 | Label-control Box, Refr |
|
- | |||||
| 21 | 5303294323 | Control-temperature |
|
- | |||||
| 22 | 3018891 | Housing-temp Sensor, Plastic |
|
- | |||||
| 23 | 215846602 | Timer-defrost (Replaces: 5303275811) |
|
Immediately | $ 28.20 | ||||
| 23 | 215277000 | Cover, Defrost Timer, Top (not Illustrated) |
|
- | |||||
| 23 | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 23 | 5303289058 | Shield, Defrost Timr, Btm (not Illustrated) |
|
- | |||||
| 41 | 5308000039 | Screw |
|
- | |||||
| 41 | 5303209814 | Nut, ``u`` Type, No. 8-15(a) (not Illustrated) |
|
- | |||||
| 53 | 215625300 | Box-damper Control, W/foam Tape |
|
- | |||||
| 75 | 5303289052 | Shield-light, Refr |
|
- | |||||
| 76 | 218225800 | Cover-light Socket |
|
- | |||||
| 78 | 5303274237 | Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2 |
|
- | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 83 | 5308000107 | Bracket-connector |
|
$ 33.23 | |||||
| 111 | 5303289024 | Wireway, Frzr |
|
- | |||||
| 114 | 5303272130 | Switch, Light/lamp |
|
- | |||||
| 115 | 215011501 | Damper Assy, W/seal |
|
- | |||||
| 116 | 215011400 | Seal-damper, Foam |
|
- | |||||
| 117 | 215011700 | Louver, Damper Cont Box |
|
- | |||||
| *66169 | 215188300 | Screw, Control Box Mtg, Hex Head, 8a X 1, Refr/frzr |
|
- | |||||
| 17A | 5303306143 | Box-control, Frzr |
|
- | |||||
| 20A | 5303306142 | Label-control Box, Frzr |
|
- |
