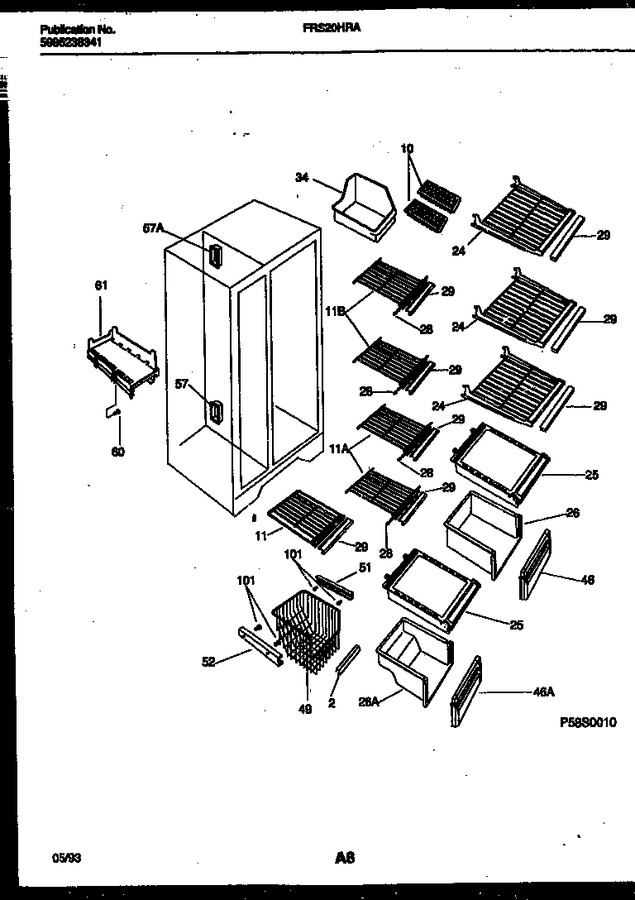

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303288956		Trim-basket		Appelez-nous	-
10	01121808		Ice Tray, Plastic		Appelez-nous	-
11	5303288959		Shelf-freezer, Sliding Wire		Appelez-nous	-
24	5303291258		Shelf-cantilever, Refr, (3)		Appelez-nous	-
25	5303288972		Cover-storage Pan, Upper & Lower		Appelez-nous	-
26	5303288971		Pan-storage, Upper				$ 171.91
28	3201150		Cap-protector				$ 4.57
29	215217504		Trim-shelf, Front		Appelez-nous	-
34	5303289069		Container-ice		Appelez-nous	-
46	5303291323		Front-crisper Pan, Upper		Appelez-nous	-
49	5303288957		Basket-sliding		Appelez-nous	-
51	5303288960		Hanger-basket, Rh				$ 70.77
52	5303296810		Hanger-basket, Lh		Appelez-nous	-
57	5303271653		Ferrule-inner				$ 20.27
60	5308010253		Screw		Appelez-nous	-
61	215781501		Compartmnt-ice Tray				$ 136.19
101	5308007097		Screw, Cr Truss Head, 8(a) X 3/4		Appelez-nous	-
*75521	215339900		Clip, Cantilevr Shlf				$ 5.83
11A	5303288962		Shelf-freezer, Fixed Wire, (2)		Appelez-nous	-
11B	5303288963		Shelf-freezer, Fixed Wire, (2)		Appelez-nous	-
26A	5303288968		Pan-storage, Lower				$ 204.84
46A	5303291324		Front, Storage Pan, Lower		Appelez-nous	-
57A	5303289064		Ferrule-air		Appelez-nous	-
