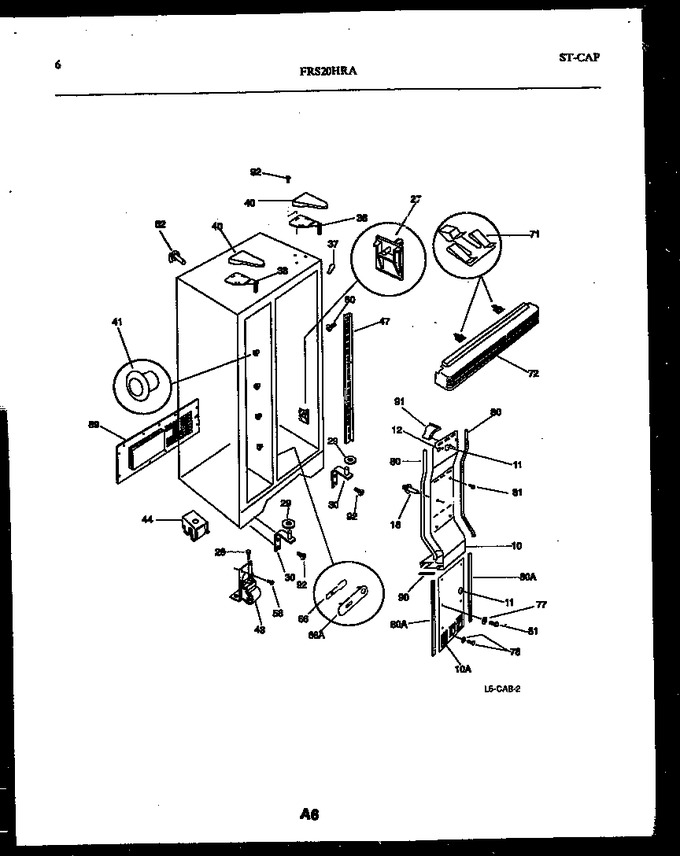

FRS20HRAW0 | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
10	5303289038	Cover-air Duct	Appelez-nous	-
11	5303208309	Plug-hole, Factory Test, I.m. Elec Conn			$ 45.50
12	215217701	Plug, I.m. Inlet Tube			$ 6.56
18	5303289043	Support-air Duct Cvr, 2.55`` Long	Appelez-nous	-
27	5303288973	Support-crisper Cvr, (4)			$ 24.41
28	5303289062	Bolt-roller Adj,hex Head,5/16-24 X 7/8	Appelez-nous	-
29	215003200	Washer, .160, Nylon			$ 54.86
30	5303289060	Bracket-lower Hinge, W/hinge Pin	Appelez-nous	-
37	5303202336	Trim-cabinet Corner, White	Appelez-nous	-
38	215004400	Bracket-upper Hinge, W/ Closer, (2)	Appelez-nous	-
40	5303288945	Cover-upper Hinge, White	Appelez-nous	-
41	5304509705	Grommet, Shelf Mtg (Replaces: 5303001609)			$ 10.01
43	5303289059	Roller Assy,front,(2)	Appelez-nous	-
44	215163900	Roller Assy, Rear,(2)	Appelez-nous	-
47	5303288974	Channel-shelf Mtg, Side, (2)	Appelez-nous	-
52	5303289294	Tube-water Inlet	Appelez-nous	-
58	5308002748	Screw	Appelez-nous	-
60	5308010253	Screw	Appelez-nous	-
66	215050201	Damper-meat Keeper	Appelez-nous	-
71	215003300	Clip-grille,(2)			$ 20.00
10A	5303289035	Cover-evap Coil, Lower	Appelez-nous	-
18A	5303289044	Support-air Duct Cvr,1.83``long(non-illustrated)	Appelez-nous	-
29A	215314300	Washer, .060, Nylon (non-illustrated)	Appelez-nous	-
30A	5303289290	Tapping Plate, Lh	Appelez-nous	-
30B	5303289291	Tapping Plate,rh(non-illustrated)	Appelez-nous	-
41A	5304500407	Grommet, Shelf Mtg, Lh (non-illustrated) (Replaces: 5308009759)		Immediately	$ 6.38
43A	5308017044	Screw-roller Mtg,spcl Ind Hex Hd, 5/16-18(23)x7/8 (non-illustrated)			$ 6.34
52A	215058000	Plug-wtr Inlet Tube (non-illustrated)			$ 2.73
66A	215050101	Cover-meat Kpr Dmpr	Appelez-nous	-
