02 - Freezer Door Parts


03 - Refrigerator Door Parts


04 - Cabinet Parts

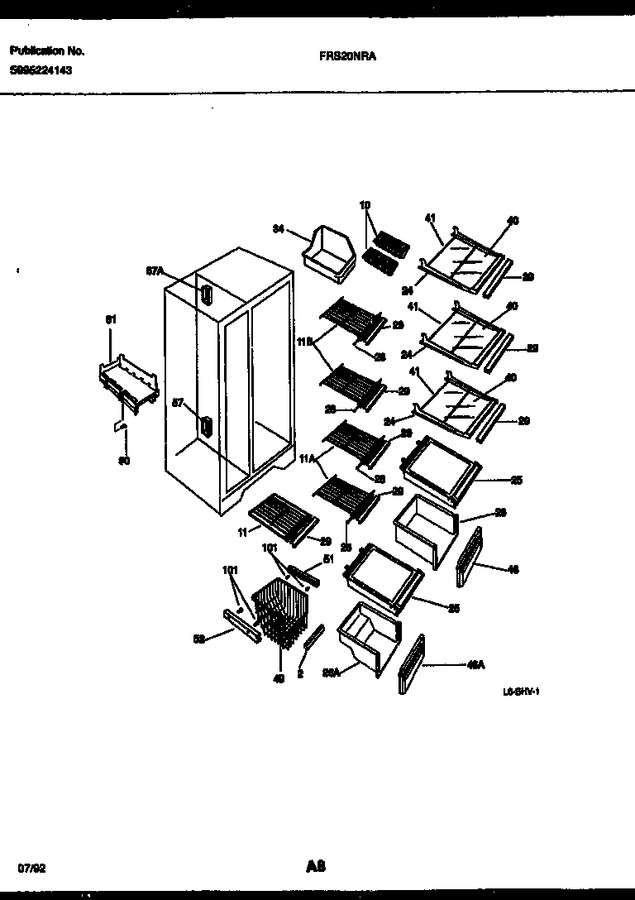

05 - Shelves And Supports


06 - Refrigerator Control Assembly, Damp


07 - System And Automatic Defrost Parts


08 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303288956		Trim-basket		Appelez-nous	-
10	01121808		Ice Tray, Plastic		Appelez-nous	-
11	5303288959		Shelf-freezer, Sliding Wire		Appelez-nous	-
24	215069012		Frame-refr Shelf, Cantilever, (3)		Appelez-nous	-
25	5303288972		Cover-storage Pan, Upper & Lower, (2)		Appelez-nous	-
26	5303288971		Pan-storage, Upper				$ 171.91
28	3201150		Cap-protector				$ 4.57
29	215217504		Trim-shelf, Front		Appelez-nous	-
34	5303289307		Container-ice		Appelez-nous	-
40	5303288966		Shelf-glass, Refr Shelf, (3)		Appelez-nous	-
41	5303284470		Trim-refr Shelf, Snap-on, Rear		Appelez-nous	-
46	5303288970		Front-storage Pan, Upper		Appelez-nous	-
49	5303288957		Basket-sliding		Appelez-nous	-
51	5303288960		Hanger-basket, Rh				$ 70.77
52	215162501		Hanger-basket, Lh, With Spring				$ 96.08
57	5303271653		Ferrule-inner				$ 20.27
60	5308010253		Screw		Appelez-nous	-
61	08009824		Compartmnt-ice Tray		Appelez-nous	-
101	5308007097		Screw, Cr Truss Head, 8(a) X 3/4		Appelez-nous	-
*64115	5300170910		Clip-cantilevr Shlf				$ 2.60
11A	5303288962		Shelf-freezer, Fixed Wire, (2)		Appelez-nous	-
11B	5303288963		Shelf-freezer, Fixed Wire, (2)		Appelez-nous	-
26A	5303288968		Pan-storage, Lower				$ 204.84
29A	5303209742		Retainer-glass (non-illustrated)		Appelez-nous	-
41A	5303211351		Lock-rear Trim (non-illustrated)		Appelez-nous	-
46A	5303288967		Front-storage Pan, Lower		Appelez-nous	-
57A	5303289064		Ferrule-air		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
