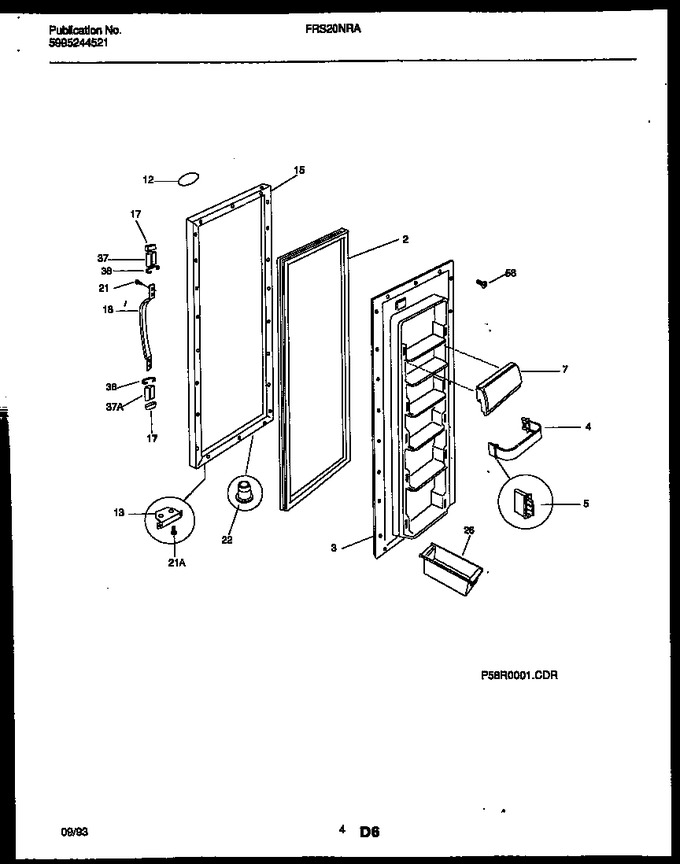

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215734302		Gasket-refr Door, Magnetic, Almond		Appelez-nous	-
3	5303288953		Panel-inner Door, Refr		Appelez-nous	-
4	215004100		Rack, Door, W/end Caps		Appelez-nous	-
5	5303288950		Support-door Rack, Rh/lh				$ 51.19
7	5303288952		Door-dairy		Appelez-nous	-
12	215008602		Nameplate Assy, Almond		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
15	215288711		Panel-refr Door, Almond, W/ Foam Insulatn		Appelez-nous	-
17	215100011		Handle End, Almond				$ 20.58
18	215068811		Handle-door, Almond		Appelez-nous	-
21	215732700		Screw, Pan Head, 10-12 X 1/2		Appelez-nous	-
22	5303289320		Bearing-hinge				$ 19.69
26	5303288969		Container-egg		Appelez-nous	-
37	215126801		Trim-handle, 1.74``, Almond, Upper		Appelez-nous	-
38	215117301		Band-decorative,handle		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
*88689	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
21A	215218600		Screw-door Stop Mtg,torx Flat Head 10-16 X 3/4		Appelez-nous	-
37A	215126802		Trim-handle, 2.98``, Almond, Lower		Appelez-nous	-
