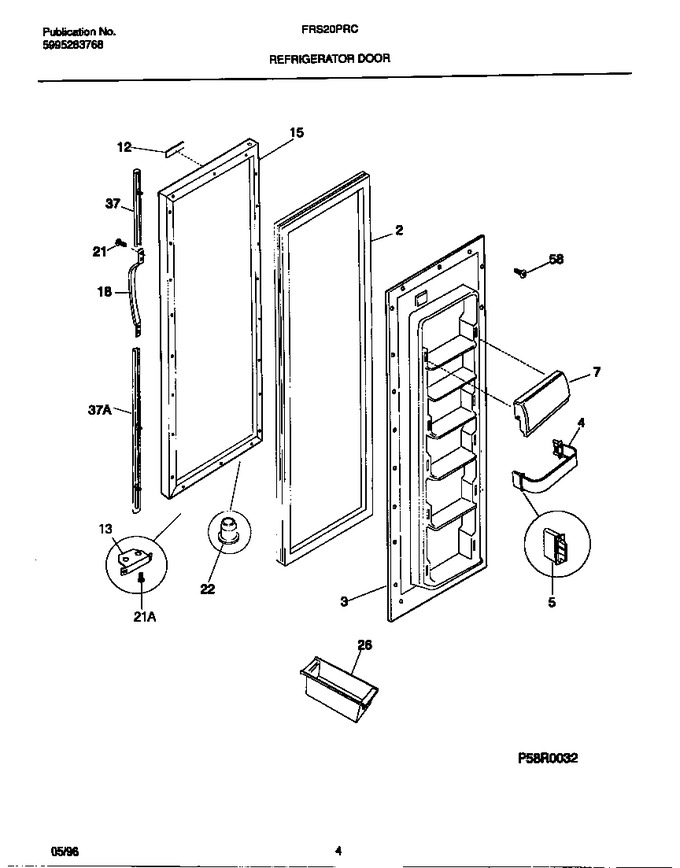

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 215734312 | Gasket-refr Door, White, Magnetic |
|
- | |||||
| 3 | 5303288953 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 215004102 | Rack-door, W/end Caps |
|
- | |||||
| 5 | 5303288950 | Support-door Rack, Rh/lh |
|
$ 51.19 | |||||
| 7 | 5303310467 | Door-dairy |
|
- | |||||
| 12 | 5315340712 | Tape, Adhesive, 12`` Long, Foam, Double-faced (not Illust |
|
- | |||||
| 12 | 218364004 | Frame-nameplate, White |
|
- | |||||
| 12 | 215008601 | Label-nameplate, White (not Illustrated) |
|
- | |||||
| 13 | 5303289522 | Door Stop |
|
$ 40.17 | |||||
| 15 | 218097701 | Panel-refr Door, White, W/foam Insulatn |
|
- | |||||
| 18 | 215826401 | Handle-door ,white |
|
$ 192.78 | |||||
| 21 | 218578600 | Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4 |
|
$ 8.08 | |||||
| 21 | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 22 | 5303289320 | Bearing-hinge |
|
$ 19.69 | |||||
| 26 | 3204522 | Container-egg |
|
$ 98.33 | |||||
| 37 | 215867053 | Trim-handle, White, Lower, W/chrome Band, And Snap Locks |
|
$ 70.72 | |||||
| 37 | 215867055 | Trim-handle, White, Upper, W/chrome Band, And Snap Lock |
|
$ 51.14 | |||||
| 58 | 5303314236 | Screw, Truss/ph Head, 8-18ab X 0.500 |
|
- | |||||
| *14241 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 |
