Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 215734301 Gasket-frzr Door, Magnetic, Almond Appelez-nous -
5 5303288950 Support-door Rack, Rh/lh Special Order $ 51.19

8 215004200 Rack, Door, W/end Caps, (5) Appelez-nous -
9 5303288955 Panel-inner Door, Frzr Appelez-nous -
11 218097811 Panel, Frzr Door, Almond, W/foam Insulatn Appelez-nous -
13 5303289522 Door Stop Special Order $ 40.17

18 215826402 Handle-door , Almond Appelez-nous -
21 218843801 Screw   (Replaces: 5303001001) Special Order $ 14.41

22 5303289320 Bearing-hinge Special Order $ 19.69

37 215867005 Trim, Handle, 14.12``, Dark Putty, Upper, W/chrome Band, Appelez-nous -
58 5308002748 Screw Appelez-nous -
*99476 5303917276 Insulation-door, Fiberglass, (bulk) Special Order $ 330.91

21A 215218600 Screw-door Stop Mtg,torx Flat Head 10-16 X 3/4 Appelez-nous -
37A 215867002 Trim-handle, 29.84``, Dark Putty, Lower, W/chrome Band, And Snap Locks Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

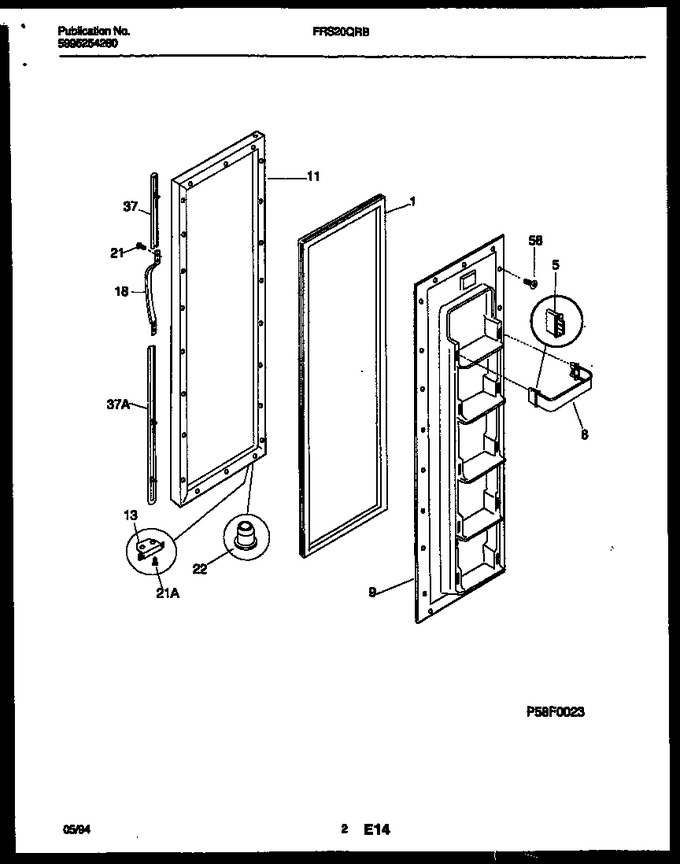

Diagram for FRS20QRBD0
