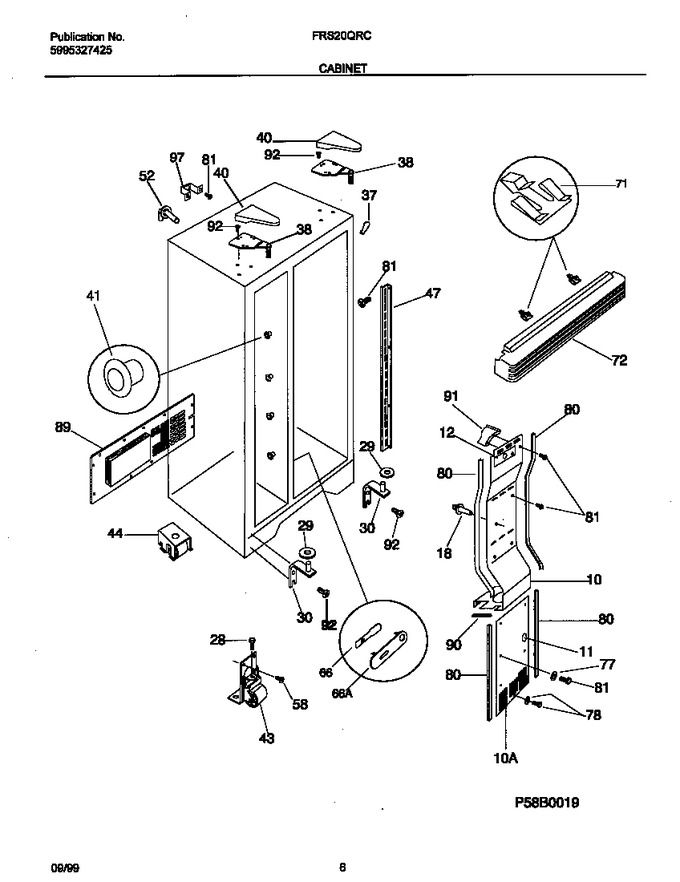

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	218751300		Cover-evap Coil, Lower		Appelez-nous	-
10	5303289038		Cover-air Duct		Appelez-nous	-
11	5303208309		Plug-hole, Factory Test				$ 45.50
12	5303291143		Plug-decorative, I.m. Inlet Tube, & Elec Conn		Appelez-nous	-
18	5303289043		Support-air Duct Cvr, 2.55`` Long		Appelez-nous	-
28	5303289062		Bolt-roller Adj,hex Head,5/16-24 X 7/8		Appelez-nous	-
30	5303289060		Bracket-lower Hinge,rh ,w/hinge Pin		Appelez-nous	-
37	5303321082		Trim-cabinet Corner, Almond		Appelez-nous	-
38	218215221		Bracket-upper Hinge, With Closer, Almond		Appelez-nous	-
40	5303318774		Cover-upper Hinge, Almond				$ 46.83
41	5304509705		Grommet, Shelf/rod Mtg, Rh   (Replaces: 5303001609)				$ 10.01
43	218615300		Roller Assy, Front, (2)		Appelez-nous	-
44	218738300		Roller Assy, Rear, (2)				$ 51.98
47	218659500		Channel-shelf Mtg,side ,(2)				$ 121.38
52	215454600		Tube-water Inlet				$ 81.11
58	5308002748		Screw		Appelez-nous	-
66	218171301		Cover-meat Kpr Dmpr				$ 45.09
66	215050201		Damper-meat Keeper		Appelez-nous	-
71	218515401		Clip-grille				$ 17.72
72	218359608		Grille/kickplate, Almond		Appelez-nous	-
77	5303001216		Washer-nylon,3/16 X 5/8 Od		Appelez-nous	-
78	5303274237		Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
89	5303288947		Cover-machine Compt		Appelez-nous	-
91	218769900		Deflector-air, Air Duct Cover		Appelez-nous	-
92	241710601		Screw   (Replaces: 5303001479)				$ 13.46
97	5303289299		Bracket-im Plug		Appelez-nous	-
*72285	5303289044		Support-air Duct Cvr,1.83`` Long		Appelez-nous	-
*72286	218730700		Tapping Plate,lh				$ 28.08
*72287	218730800		Tapping Plate,rh		Appelez-nous	-
*72288	218730900		Washer		Appelez-nous	-
*72289	5304500407		Grommet, Shelf Mtg, Lh   (Replaces: 5308009759)			Immediately	$ 6.38
*72290	5308017044		Screw-roller Mtg,spcl Ind Hex Hd, 5/16-18(23) X 7/8				$ 6.34
*72291	215058000		Plug-wtr Inlet Tube				$ 2.73
*72292	5303305325		Paint, Touch, Up, Almond		Appelez-nous	-
*72294	5308016571		Plug-button,cab Liner Holes				$ 4.79
29A	215003200		Washer, .40x.63x .16,nylon				$ 54.86
29B	215314301		Washer,.40 X .75 X .06 ,nylon				$ 3.94
80A	218154003		Gasket-air Duct Cvr		Appelez-nous	-
80B	218249802		Seal-coil Cover, (2)		Appelez-nous	-
90A	215022602		Seal-foam		Appelez-nous	-
90B	5303322647		Tape-foam		Appelez-nous	-
