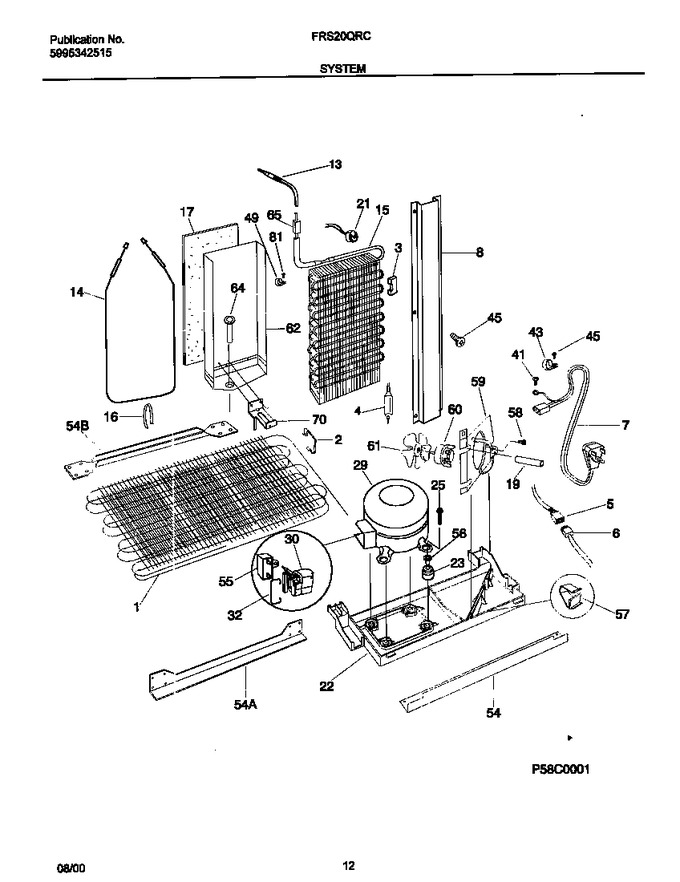

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218787700 | Condenser |
|
- | |||||
| 2 | 5303289029 | Clip-cond Mtg. (4) |
|
- | |||||
| 3 | 218679608 | Block-evap Coil,styrofoam ,(1) |
|
- | |||||
| 4 | 5303305677 | Drier-filter,r134a System (Replaces: 218944001) |
|
Immediately | $ 31.67 | ||||
| 5 | 218965301 | Wiring Harness,main |
|
- | |||||
| 6 | 218965901 | Wiring Harness,compressor |
|
- | |||||
| 7 | 215459201 | Cord-electric Power |
|
$ 66.47 | |||||
| 8 | 218803400 | Cover-wiring |
|
$ 79.11 | |||||
| 13 | 215006701 | Heat Exchanger, Suction Line |
|
- | |||||
| 14 | 218169804 | Heater-defrost |
|
$ 216.90 | |||||
| 15 | 218955801 | Evaporator,bundy |
|
- | |||||
| 16 | 5308000110 | Strap-evap/heater,aluminum ,(2) |
|
Immediately | $ 59.82 | ||||
| 17 | 5304415968 | Insulator-evap |
|
- | |||||
| 19 | 218631200 | Tube, Rubber |
|
- | |||||
| 21 | 297216600 | Thermostat-defrost (Replaces: 218969902) |
|
Immediately | $ 27.52 | ||||
| 22 | 218811100 | Base-compressor Mtg, (drain Pan) |
|
- | |||||
| 23 | 218513300 | Grommet-compr Mtg,(4) |
|
$ 42.53 | |||||
| 25 | 218773500 | Screw-compressor Mtg, Hex Washer Head, 10b X 1 1/4 |
|
- | |||||
| 29 | 5304478809 | Compressor,r134a ,w/o Electricals (Replaces: 218894801) |
|
Immediately | $ 584.96 | ||||
| 30 | 218721109 | Starter-ptc |
|
- | |||||
| 32 | 216649100 | Clamp,elec Cont Mtg ,compressor |
|
$ 12.50 | |||||
| 41 | 5308000039 | Screw |
|
- | |||||
| 43 | 215174700 | Clamp-service Cord, Strain Relief, Galv Steel |
|
- | |||||
| 45 | 218769200 | Screw,hx Wshr Hd Spec ,6-32 X .5 |
|
- | |||||
| 49 | 218990801 | Bracket-evap/cvr Mtg |
|
$ 63.79 | |||||
| 54 | 5303289311 | Rail-compr Support |
|
- | |||||
| 54 | 5303289027 | Rail-cabinet Base,rear |
|
- | |||||
| 54 | 5303289292 | Rail-cabinet Base, Front |
|
- | |||||
| 55 | 5304464438 | Capacitor-run,220 Vac ,15 Microfarad (Replaces: 218909901) |
|
Immediately | $ 35.38 | ||||
| 56 | 218769300 | Insert-compressor Mtg |
|
- | |||||
| 57 | 218247300 | Clip-wiring Harness |
|
- | |||||
| 58 | 215004600 | Screw,cond Fan Mtr, Hx Serr Wshr Hd, 8-36 X 7/16, (2) |
|
- | |||||
| 59 | 5303289031 | Shroud-cond Fan Mtr |
|
- | |||||
| 60 | 215501901 | Motor-condenser Fan |
|
$ 202.70 | |||||
| 61 | 5303289032 | Blade-cond Fan |
|
- | |||||
| 62 | 215048202 | Trough-drain,w/shield Assy ,& 17 Insulator |
|
- | |||||
| 64 | 5303289063 | Tube-drain |
|
- | |||||
| 65 | 5303289301 | Spacer-tube |
|
$ 35.39 | |||||
| 70 | 5303289041 | Bracket-evap/cvr Mtg |
|
- | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| *06228 | 5303208866 | Spacer-cond Tube,black |
|
$ 1.94 | |||||
| *06229 | 5303289026 | Spacer Tube |
|
- | |||||
| *06230 | 5304406721 | Spacer-cond Tube,round ,5/8 Od X .81``lg |
|
- | |||||
| *06231 | 218679605 | Block-evap Coil,2.05 Wide ,styrofoam ,(2) |
|
- | |||||
| *06232 | 215013800 | Wiring Harness,refr Controls |
|
- | |||||
| *06233 | 215226000 | Wiring Harness,frzr Controls |
|
- | |||||
| *06234 | 5303001199 | Clamp |
|
$ 65.92 | |||||
| *06235 | 240396801 | Clamp, Nylon (Replaces: 5308000133) |
|
$ 19.13 | |||||
| *06236 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| *06237 | 215732700 | Screw,pan Head ,10-12a X 0.50 |
|
- | |||||
| *06238 | 215004700 | Nut,speed |
|
$ 3.78 | |||||
| *06239 | 215004800 | Grommet-silencer |
|
$ 52.50 | |||||
| *06240 | 5303917166 | Hot Tube Repair Kit, Service |
|
- |
