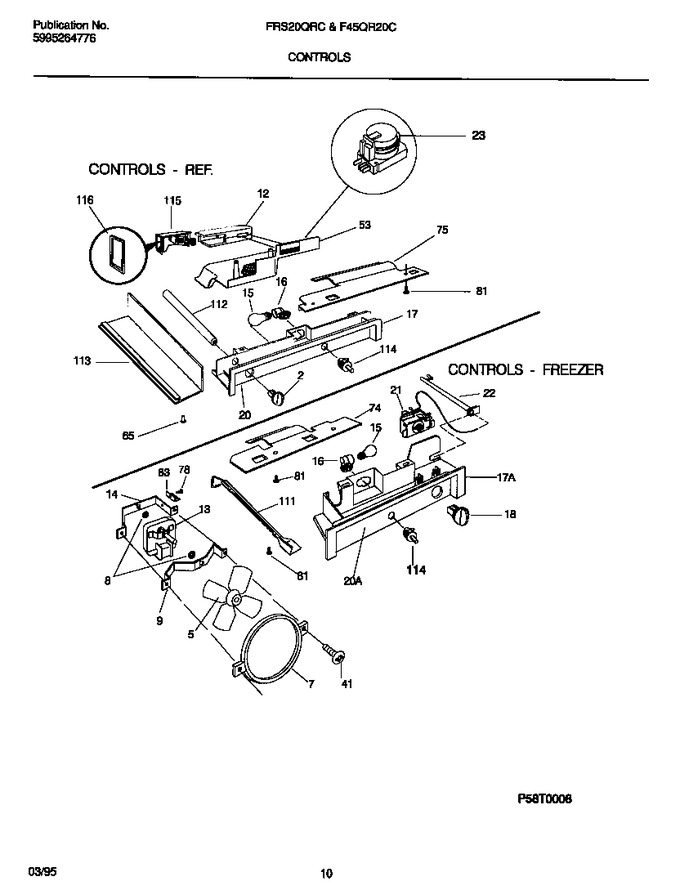

02 - Freezer Door
03 - Refrigerator Door
04 - Cabinet
05 - Shelves
06 - Controls
07 - System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303308569 | Knob-damper Control |
|
- | |||||
| 5 | 5308000010 | Fan Blade |
|
Immediately | $ 49.03 | ||||
| 7 | 5308000124 | Ring-fan Orifice |
|
$ 53.58 | |||||
| 8 | 5300157666 | Bushing - Motor Mtg, (2) |
|
- | |||||
| 9 | 5303205118 | Bracket-motor Mtg, Front |
|
- | |||||
| 12 | 215809600 | Diffuser-air |
|
- | |||||
| 14 | 5303205119 | Bracket-motor Mtg, Rear |
|
- | |||||
| 15 | 5303001179 | Light Bulb/lamp,40 W |
|
- | |||||
| 16 | 241559801 | Socket-light/lamp (Replaces: 5303289050) |
|
$ 72.68 | |||||
| 17 | 5303289049 | Box, Control, Refr |
|
- | |||||
| 17 | 5303289056 | Box-control, Frzr |
|
- | |||||
| 18 | 5303308568 | Knob-temp Control, Frzr |
|
- | |||||
| 20 | 5303308566 | Label-control Box, Frzr |
|
- | |||||
| 20 | 5303308567 | Label-control Box, Refr |
|
- | |||||
| 21 | 5303294323 | Control-temperature |
|
- | |||||
| 22 | 3018891 | Housing-temp Sensor, Plastic |
|
- | |||||
| 53 | 215809501 | Box-damper Control |
|
- | |||||
| 65 | 5303001361 | Pin-mounting, Push-in, Plastic |
|
- | |||||
| 74 | 5303289516 | Shield - Light,frzr |
|
- | |||||
| 75 | 5303289052 | Shield-light, Refr |
|
- | |||||
| 78 | 5303274237 | Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2 |
|
- | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 83 | 5308000107 | Bracket-connector |
|
$ 33.23 | |||||
| 111 | 5303289024 | Wireway, Frzr |
|
- | |||||
| 112 | 215277101 | Rod-damper Extn |
|
- | |||||
| 113 | 5303289047 | Cover - Dmpr Rod Ext |
|
- | |||||
| 114 | 5303289051 | Switch-light/lamp,white |
|
$ 26.23 | |||||
| 115 | 215011502 | Damper Assy, W/seal |
|
$ 303.35 | |||||
| 116 | 215011400 | Seal-damper, Foam |
|
- | |||||
| *82408 | 215188300 | Screw, Control Box Mtg, Hex Head, 8a X 1, Refr/frzr |
|
- | |||||
| 13A | 215348100 | Motor-evap Fan |
|
- | |||||
| 13B | 215474201 | Washer, ``slinger``, Nylon, Evap Fan Shaft (not Illustrated) |
|
Immediately | $ 18.43 | ||||
| 23A | 215846602 | Timer-defrost (Replaces: 5303275811) |
|
Immediately | $ 28.20 | ||||
| 23B | 215617100 | Harness-wiring, Timer (not Illustrated) |
|
- | |||||
| 41A | 5308000039 | Screw |
|
- | |||||
| 41B | 5303209814 | Nut, ``u`` Type, No. 8-15(a) (not Illustrated) |
|
- |
