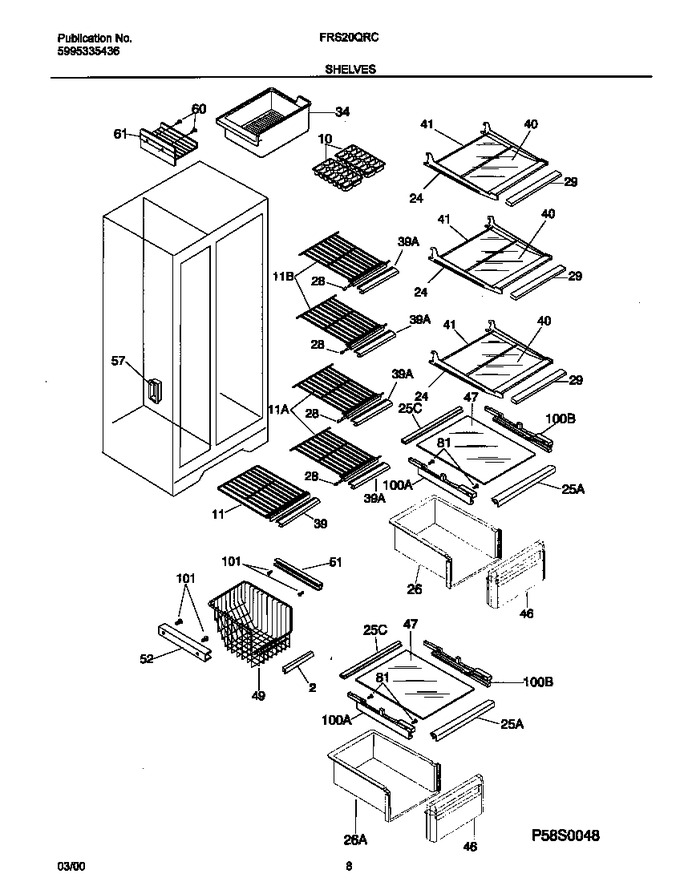

05 - Shelves
06 - Controls
07 - System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303300707 | Trim-basket |
|
- | |||||
| 10 | 215667501 | Tray-ice,plastic (optiional Accessory) |
|
Immediately | $ 6.07 | ||||
| 11 | 218298005 | Shelf, Freezer, Sliding, Wire |
|
$ 137.83 | |||||
| 11 | 5304405989 | Shelf-freezer |
|
- | |||||
| 11 | 5304405990 | Shelf-freezer,fixed Wire |
|
- | |||||
| 24 | 215919136 | Frame, Refr Shelf, Cantilever, (3) |
|
- | |||||
| 25 | 218015401 | Trim-storage Pan Cvr, Snap-on, Rear |
|
- | |||||
| 25 | 218015301 | Trim-storage Pan Cvr, Snap-on, Front |
|
$ 48.25 | |||||
| 26 | 5303288968 | Pan-storage, Lower |
|
$ 204.84 | |||||
| 26 | 5303288971 | Pan-storage, Upper |
|
$ 171.91 | |||||
| 28 | 08013638 | End Cap-shelf, Protector, Lower Fzr Shelf |
|
- | |||||
| 29 | 215919413 | Trim, Refr Shelf, Front, (3) |
|
$ 51.66 | |||||
| 34 | 5303212918 | Container-ice |
|
$ 104.66 | |||||
| 39 | 215217562 | Trim, Frzr Shelf |
|
$ 9.60 | |||||
| 39 | 215217563 | Trim-frzr Shelf |
|
- | |||||
| 40 | 218390585 | Glass-refr Shelf, Clear, White Graphics, (3) |
|
- | |||||
| 41 | 215919813 | Trim-refr Shelf, Rear (3) |
|
$ 36.44 | |||||
| 46 | 5303308561 | Front-storage Pan, Upper |
|
$ 242.97 | |||||
| 46 | 5303308562 | Front-storage Pan, Lower |
|
$ 241.34 | |||||
| 47 | 215723551 | Insert-pan Cover,14.61`` X 17.32`` ,glass |
|
$ 75.72 | |||||
| 47 | 218390586 | Insert-pan Cover,14.61`` X 17.32`` ,glass |
|
- | |||||
| 49 | 5303288957 | Basket-sliding |
|
- | |||||
| 51 | 5303288960 | Hanger-basket, Rh |
|
$ 70.77 | |||||
| 52 | 215162501 | Hanger-basket, Lh, With Spring |
|
$ 96.08 | |||||
| 57 | 5303271653 | Ferrule-inner |
|
$ 20.27 | |||||
| 60 | 5304455852 | Screw,hex Washer Head ,8-15a X 1.000 ,(2) (Replaces: 5303207328) |
|
$ 12.76 | |||||
| 61 | 215781501 | Shelf-ice Tray, Wire |
|
$ 136.19 | |||||
| 101 | 5304455650 | Screw,hex Wshr Hd ,8-18ab X 0.750 ,gusset/hanger (Replaces: 215005000) |
|
$ 14.18 | |||||
| *21777 | 218159700 | Spacer-shelf |
|
- | |||||
| *21778 | 215328300 | Clip-shelf |
|
$ 14.02 | |||||
| 100A | 218015501 | Support-pan Cover, Lh |
|
$ 37.26 | |||||
| 100B | 218015601 | Support-pan Cover, Rh |
|
$ 55.18 |
