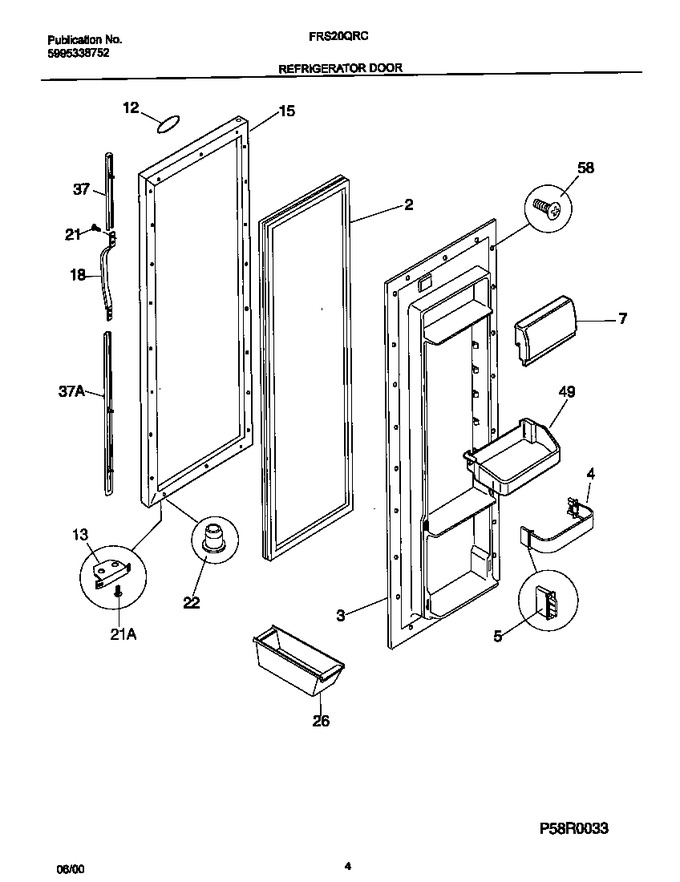

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215734312		Gasket-refr Door, White, Magnetic		Appelez-nous	-
3	215379101		Panel, Inner Door, Refr		Appelez-nous	-
4	218807013		Rack-door,w/end Caps		Appelez-nous	-
5	5303288950		Support-door Rack, Rh/lh				$ 51.19
7	5303308563		Door-dairy		Appelez-nous	-
12	218364004		Frame-nameplate, White		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
15	5303918183		Panel-ext Refr Door,white ,w/foam Insulatn		Appelez-nous	-
18	297311201		Handle-door, White   (Replaces: 218762701)			Immediately	$ 80.60
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
22	5303289320		Bearing-hinge				$ 19.69
26	3204522		Container-egg				$ 98.33
37	215867055		Trim-handle, White, Upper, W/chrome Band				$ 51.14
37	215867053		Trim-handle, White, Lower, W/chrome Band				$ 70.72
49	215441502		Bin-door,gallon   (Replaces: 215441513)				$ 176.87
58	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
*96921	215008601		Label-nameplate, White		Appelez-nous	-
*96923	5315340712		Tape,adhesive ,12`` Long ,foam ,double-faced		Appelez-nous	-
*96924	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
37B	215940700		Lock-handle Trim, Stick-on		Appelez-nous	-
37C	218676001		Band-decorative,chrome ,handle Trim				$ 36.17
