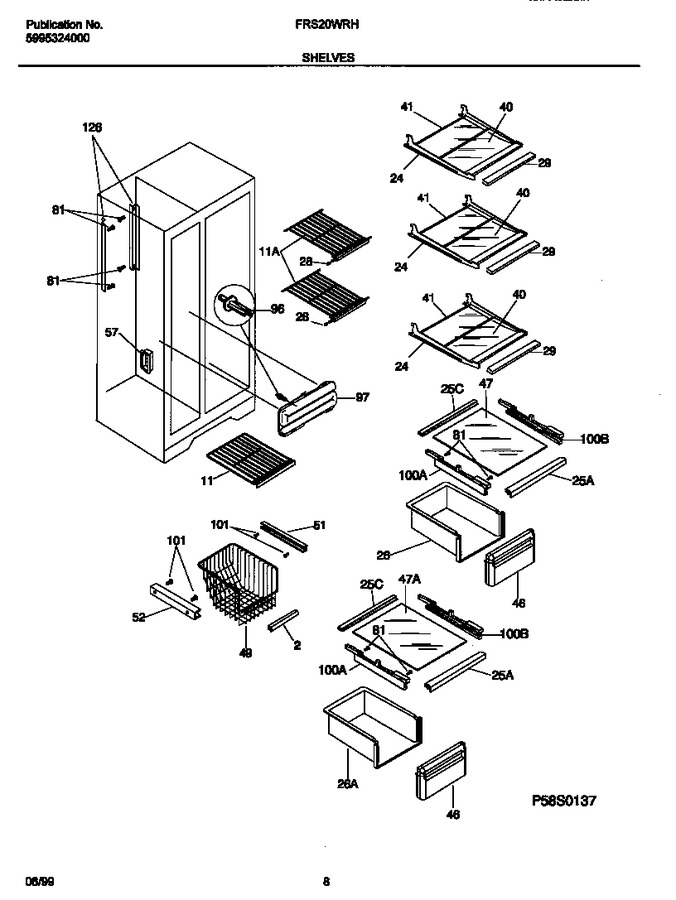

SELECT A DIAGRAM

01 - Cover


02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Ice Dispenser


09 - Ice Container


10 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303300707		Trim-basket		Appelez-nous	-
11	218298005		Shelf, Freezer, Sliding, Wire				$ 137.83
11	5304405989		Shelf-freezer		Appelez-nous	-
24	215919136		Frame, Refr Shelf, Cantilever, (3)		Appelez-nous	-
25	218015401		Trim-storage Pan Cvr, Snap-on, Rear		Appelez-nous	-
25	218015301		Trim-storage Pan Cvr, Snap-on, Front				$ 48.25
26	5303288968		Pan-storage, Lower				$ 204.84
26	5303288971		Pan-storage, Upper				$ 171.91
28	08013638		End Cap-shelf, Protector, Lower Fzr Shelf		Appelez-nous	-
29	215919413		Trim, Refr Shelf, Front, (3)				$ 51.66
40	218498188		Glass-shelf,14.61`` X 14.57``		Appelez-nous	-
41	215919813		Trim-refr Shelf, Rear (3)				$ 36.44
46	5304411658		Front-storage Pan		Appelez-nous	-
47	218498189		Insert-pan Cover,glass		Appelez-nous	-
47	215723551		Insert-pan Cover,glass ,clear ,lower				$ 75.72
49	5303288957		Basket-sliding		Appelez-nous	-
51	5303288960		Hanger-basket, Rh				$ 70.77
52	215162501		Hanger-basket, Lh, With Spring				$ 96.08
57	5303271653		Ferrule-inner				$ 20.27
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
96	215192600		Support - Water Tank				$ 10.71
97	5303918258		Water Tank   (Replaces: 218871301)				$ 121.63
101	5304455650		Screw,hex Wshr Hd ,8-18ab X 0.750 ,gusset/hanger   (Replaces: 215005000)				$ 14.18
*25534	215339900		Clip-shelf				$ 5.83
*25535	5303001038		Washer, .28 X .62 X .19, Nylon				$ 13.34
100A	218015501		Support-pan Cover, Lh				$ 37.26
100B	218015601		Support-pan Cover, Rh				$ 55.18
126A	218867401		Channel,auger Mtg ,lh		Appelez-nous	-
126B	218867402		Channel`auger Mtg ,rh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
