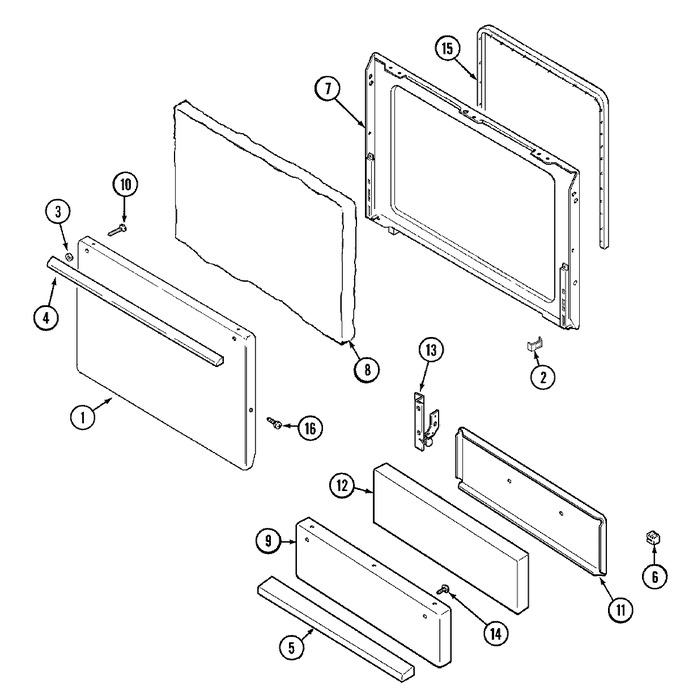

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
1	2401F096-71		Panel, Door (wht)	18	Appelez-nous	-
1	74002282		Panel, Door (wht)	10	Appelez-nous	-
2	7112P034-60		Clip, Door	10	Appelez-nous	-
3	WP74005058		Spacer, Handle (wht)   (Replaces: 8010P089-60)	10			$ 7.05
4	74007088		Handle, Door (wht)	40	Appelez-nous	-
4	2411F003-71		Handle, Door (wht)	10	Appelez-nous	-
5	2411F003-71		Handle, Door (wht)	10	Appelez-nous	-
5	74007088		Handle, Door (wht)	40	Appelez-nous	-
6	8016P015-60		Glide	10			$ 5.65
7	74002396		Lining, Door	10	Appelez-nous	-
7	74003240		Lining, Door	27	Appelez-nous	-
8	74001814		Insulation, Broiler Drawer	10	Appelez-nous	-
9	74001729		Panel, Drawer (wht)	10	Appelez-nous	-
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	WP3387230		Screw, Clamp   (Replaces: 7101P080-60)	10		Immediately	$ 7.69
11	74002397		Lining, Drawer	10	Appelez-nous	-
11	74007553		Lining, Drawer	41	Appelez-nous	-
12	4804F025-60		Insulation	10	Appelez-nous	-
13	74007560		Hinge, Drawer	41			$ 61.30
13	74002398		Hinge, Drawer	10	Appelez-nous	-
14	74002481		Screw, Handle   (Replaces: 7101P283-60)	10			$ 5.82
15	WP7212P043-60		Seal, Door   (Replaces: 7212P043-60)	10		Immediately	$ 56.83
