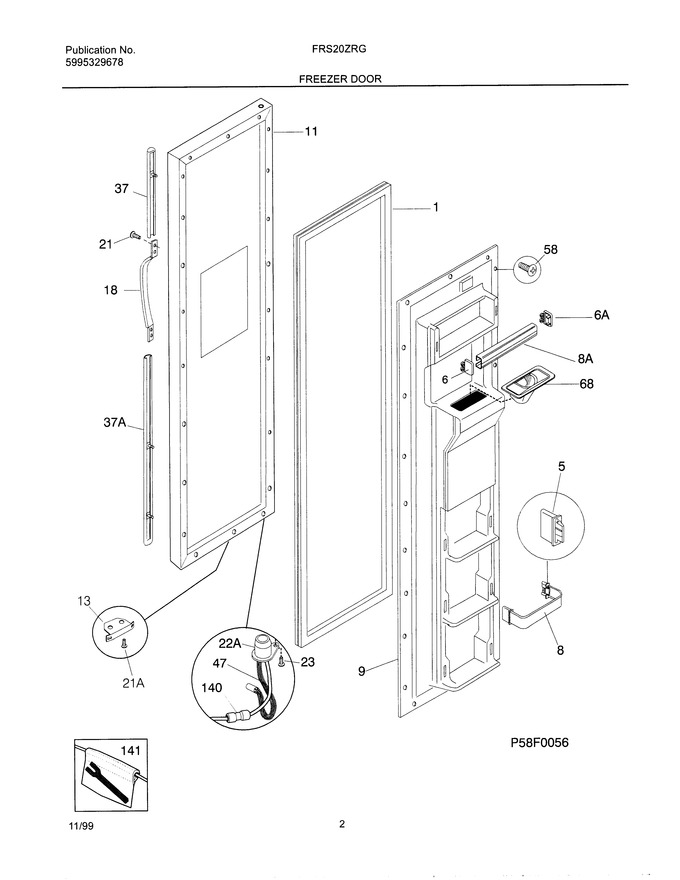

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	5303288950		Support-door Rack, Rh/lh				$ 51.19
6	5303323484		Support-door Rack, White, Lh		Appelez-nous	-
8	218807014		Rack-door,w/end Caps		Appelez-nous	-
9	218748601		Panel-inner Door, Frzr		Appelez-nous	-
11	5303918091		Panel-frzr Door,black ,w/insulation		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
18	218762703		Handle-door,black				$ 67.04
21	218886801		Screw-8-32 X 1/2 No. 10 Truss Ca		Appelez-nous	-
23	5303001020		Screw		Appelez-nous	-
37	215867093		Trim-handle,black ,upper ,w/chrome Band				$ 14.49
47	218922901		Harness-wiring,frzr Door		Appelez-nous	-
58	218781101		Screw, Pan Head, 8-18 X 5/8   (Replaces: 218781100)				$ 15.60
68	218020600		Chute-ice		Appelez-nous	-
140	218922801		Elbow-water Tube				$ 55.28
141	218929601		Tool-push Connector		Appelez-nous	-
21A.	218578600		Screw-door Stop Mtg				$ 8.08
22A	215615300		Bushing-door,bronze		Appelez-nous	-
37A	215867092		Trim-handle,black ,lower ,w/chrome Band				$ 116.24
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
37A	218676001		Band-decorative,chrome ,handle Trim				$ 36.17
6A	5303323485		Support-door Rack, White, Rh		Appelez-nous	-
8A	215474049		Rack-door		Appelez-nous	-
F1	215734321		Gasket-frzr Door, Black, Magnetic				$ 234.41
NI	5303917276		Insualtion-door, Fiberglass, (bulk)				$ 330.91

    View Diagram in Separate Window       Print Part List
