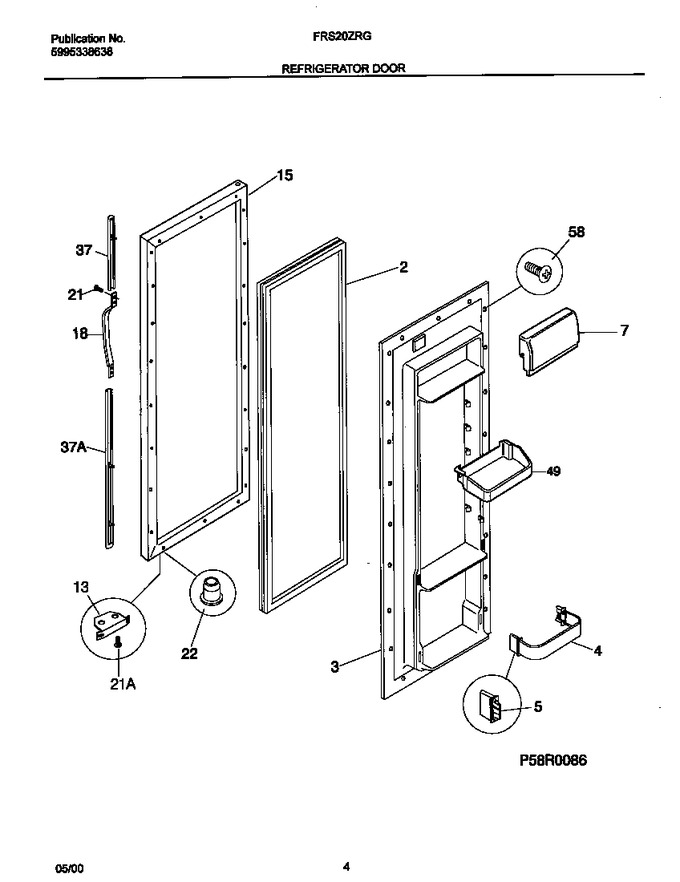

03 - Refrigerator Door
04 - Cabinet
05 - Shelves
06 - Controls
07 - System
08 - I&w Dispenser
09 - Ice Container
10 - Ice Maker
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 215734322 | Gasket-refr Door, Black, Magnetic |
|
$ 282.50 | |||||
| 3 | 218749301 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 218807013 | Rack-door,w/end Caps |
|
- | |||||
| 5 | 5303288950 | Support-door Rack, Rh/lh |
|
$ 51.19 | |||||
| 7 | 5303308341 | Door-dairy,12.96`` Wide |
|
$ 97.02 | |||||
| 13 | 5303289522 | Door Stop |
|
$ 40.17 | |||||
| 15 | 5303918186 | Panel-ext Ref Door,black ,w/foam Insulatn |
|
- | |||||
| 18 | 218762703 | Handle-door,black |
|
$ 67.04 | |||||
| 21 | 218252201 | Screw,8 Truss Hd ,10-32ca X 0.500 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 21 | 218578600 | Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4 |
|
$ 8.08 | |||||
| 22 | 5303289320 | Bearing-hinge |
|
$ 19.69 | |||||
| 37 | 215867092 | Trim-handle,black ,lower ,w/chrome Band |
|
$ 116.24 | |||||
| 37 | 215867093 | Trim-handle,black ,upper ,w/chrome Band |
|
$ 14.49 | |||||
| 49 | 215441502 | Bin-door,gallon (Replaces: 215441513) |
|
$ 176.87 | |||||
| 58 | 218781101 | Screw,pan Head ,8-18 X 0.625 (Replaces: 218781100) |
|
$ 15.60 | |||||
| *60682 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 37A | 215940700 | Lock-handle Trim, Stick-on |
|
- | |||||
| 37B | 218676001 | Band-decorative,chrome ,handle Trim |
|
$ 36.17 |
