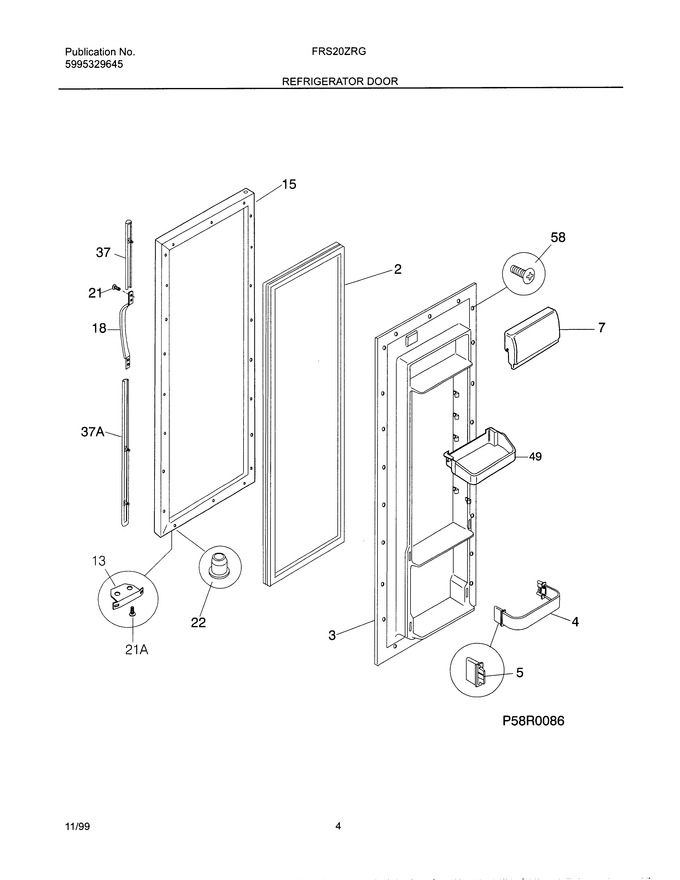

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	218749301		Panel-inner Door, Refr		Appelez-nous	-
4	218807013		Rack-door,w/end Caps		Appelez-nous	-
5	5303288950		Support-door Rack, Rh/lh				$ 51.19
7	5303308341		Door-dairy,12.96`` Wide				$ 97.02
13	5303289522		Door Stop				$ 40.17
15	5303917894		Panel-refr Door, Almond, W/foam Insulatn		Appelez-nous	-
18	218762704		Handle-door, Almond		Appelez-nous	-
21	218886801		Screw-8-32 X 1/2 No. 10 Truss Ca		Appelez-nous	-
22	5303289320		Bearing-hinge				$ 19.69
37	215867074		Trim-handle, Almond, Upper, W/chrome Band, And Snap Lock				$ 76.91
49	215441502		Bin-door,gallon   (Replaces: 215441513)				$ 176.87
58	218781101		Screw, Pan Head, 8-18 X 5/8   (Replaces: 218781100)				$ 15.60
21A	218578600		Screw-door Stop Mtg				$ 8.08
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
37A	215867073		Trim-handle, Almond, Lower, W/chrome Band, And Snap Lock				$ 12.55
37A	218676001		Band-decorative,chrome ,handle Trim				$ 36.17
F2	215734302		Gasket-refr Door, Almond, Magnetic		Appelez-nous	-
NI	5303917276		Insualtion-door, Fiberglass, (bulk)				$ 330.91

    View Diagram in Separate Window       Print Part List
