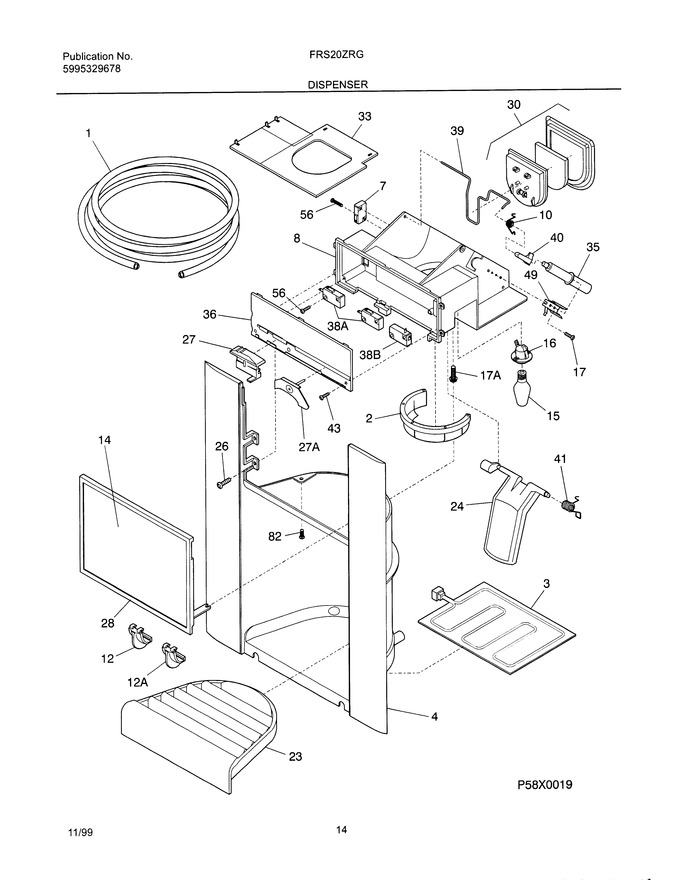

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5318582501		Tube-cut To Size (2)		Appelez-nous	-
1	218832302		Tube-water Inlet,inlet Valve ,to Filter				$ 30.98
1	218859901		Tube-water Inlet,inlet Valve ,to Filter		Appelez-nous	-
1	218949201		Tube-water Inlet,formed ,plastic ,		Appelez-nous	-
2	218505302		Deflector-ice Disp, Almond		Appelez-nous	-
4	218852402		Housing-dispenser,almond		Appelez-nous	-
7	218284800		Switch-actuator,micro		Appelez-nous	-
8	218874901		Module-dispenser		Appelez-nous	-
10	218209800		Spring,dispenser Door		Appelez-nous	-
12	218836202		Knob-selector,almond				$ 48.46
14	218416189		Label-module Cover,almond		Appelez-nous	-
15	218284900		Light Bulb / Lamp, 4w, 115v		Appelez-nous	-
16	240548901		Socket-light/lamp   (Replaces: 215284900)				$ 63.70
17	215794400		Screw,6 X 1/4		Appelez-nous	-
23	5303297845		Drip Tray,almond				$ 67.04
24	218921302		Actuator,almond				$ 46.04
26	215503203		Screw,cr Pan Hd `10-16 X 0.500   (Replaces: 215503200)			Immediately	$ 7.09
27	218432600		Cam-slide				$ 53.97
28	218906202		Cover-module,almond		Appelez-nous	-
30	215753600		Door Assy-ice,w/gasket,insul		Appelez-nous	-
33	218870201		Heater-disp Throat				$ 244.43
36	218835601		Cover-selector Sw				$ 27.09
39	218284600		Wire-ice Door		Appelez-nous	-
40	218284500		Yock-heat Motor				$ 35.01
41	215917800		Spring-actuator				$ 10.03
43	215760300		Screw,4 X 3/8				$ 9.35
49	215794000		Bracket-heat Motor				$ 34.81
56	218434300		Screw-micro Sw., Pn Hd, 4-24 X 9/16		Appelez-nous	-
82	215296300		Screw, Cr Plask, 8-10 X 1/2		Appelez-nous	-
12A	218925501		Spring-knob				$ 20.56
12A	218925402		Knob-selector,almond		Appelez-nous	-
17A	215840700		Screw,truss Head,6-20 X 3/8		Appelez-nous	-
17A	215923400		Washer-flat (non-illustrated)		Appelez-nous	-
27A	218814901		Rocker-switch		Appelez-nous	-
38A	218479900		Switch-micro				$ 57.65
F3	215484300		Heater-door Housing				$ 40.85
F35	218740003		Heat Motor, 115v				$ 131.99
F38B	241689106		Switch-micro   (Replaces: 218835401)			Immediately	$ 8.60
NI	218863108		Harness-wiring,disp		Appelez-nous	-
