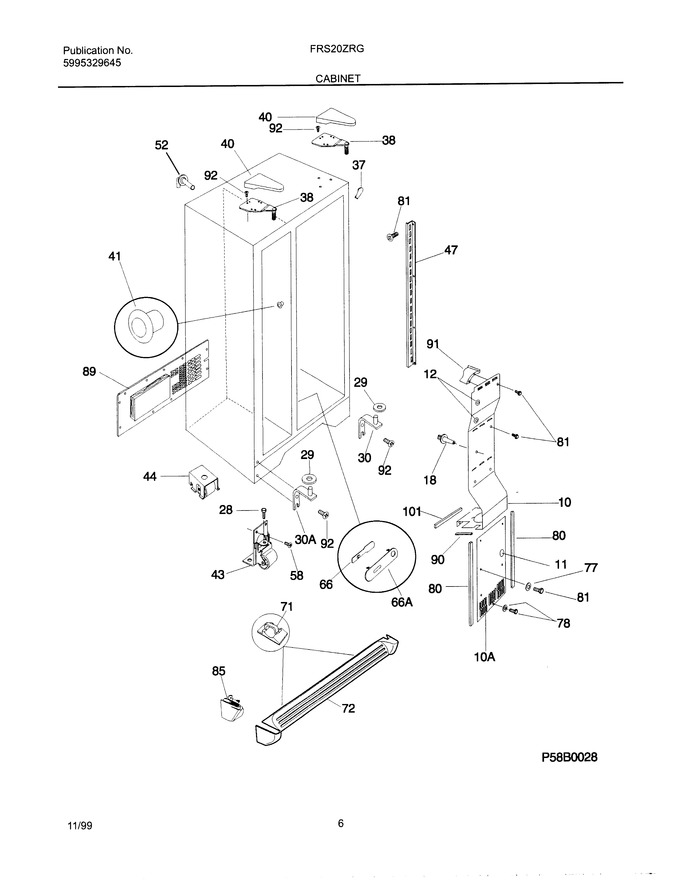

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	218748901		Cover-air Duct		Appelez-nous	-
10	5308009617		Lock Washer (2)		Appelez-nous	-
11	5303208309		Button Plug-short Test Hole (non-illustrated)				$ 45.50
12	5303001147		Plug-harness Hole   (Replaces: 215230400)				$ 22.30
18	5303289044		Support-air Duct Cvr,1.83``long(non-illustrated)		Appelez-nous	-
18	5303289043		Dsupport, Air Duct Cvr, 2.55`` Long		Appelez-nous	-
28	5303289062		Bolt-roller Adj,hex Head,5/16-24 X 7/8		Appelez-nous	-
29	218871201		Washer,nylon ,0.363 Id W/nibs		Appelez-nous	-
29	215598900		Washer-flat, .691 X 1 X .05, Zinc, I&w Hinge Brkt		Appelez-nous	-
29	215314301		Washer,.40 X .75 X .06 ,nylon				$ 3.94
30	218730800		Tapping Plate, Rh (not Illustrated)		Appelez-nous	-
30	5303289060		Bracket-lower Hinge, W/hinge Pin		Appelez-nous	-
37	5303321081		Trim-cabinet Corner, White				$ 8.82
38	218215215		Bracket-upper Hinge, With Closer, White		Appelez-nous	-
38	218215213		Bracket-upper Hinge, With Closer, White, Rh		Appelez-nous	-
40	5303318773		Cover-upper Hinge, White				$ 42.47
41	5304500407		Gromment, Shelf Mtg, Lh, (non-illustrated)   (Replaces: 5308009759)			Immediately	$ 6.38
41	5304509705		Gommet, Shelf/rod Mtg, Rh   (Replaces: 5303001609)				$ 10.01
43	218615300		Roller Assy, Front, (2)		Appelez-nous	-
43	5308017044		Screw - Roller Adj Mounting (2)				$ 6.34
44	218738300		Roller Assy, Rear, (2)				$ 51.98
47	218659500		Channel-shelf Mtg,side ,(2)				$ 121.38
52	215454600		Tube-water Inlet				$ 81.11
58	5308002748		Screw		Appelez-nous	-
66	215050201		Damper-meat Keeper		Appelez-nous	-
71	218515401		Clip				$ 17.72
72	218359613		Grille/kickplate, White				$ 151.36
77	5303001216		Washer-nylon,3/16 X 5/8 Od		Appelez-nous	-
78	5303274237		Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2		Appelez-nous	-
80	218249802		Seal-coil Cover, (2)		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
85	218922701		Cover-lower Hinge,white		Appelez-nous	-
89	215741407		Cover-machine Compt,w/caution Label		Appelez-nous	-
90	5303322647		Tape-foam		Appelez-nous	-
90	215022602		Seal-foam		Appelez-nous	-
91	218769900		Deflector-air, Air Duct Cover		Appelez-nous	-
92	241710601		Screw   (Replaces: 5303001479)				$ 13.46
101	215305701		Seal-foam		Appelez-nous	-
101	218663103		Gasket-air Duct Cvr		Appelez-nous	-
10A	218751301		Cover-evap Coil,lower		Appelez-nous	-
30A	215009000		Bracket-lower Hinge,lh,w/hinge Pin		Appelez-nous	-
30A	218730700		Tapping Plate, Lh (not Illustrated)				$ 28.08
66A	218171301		Cover-meat Kpr Dmpr				$ 45.09
NI	5308016571		Butter Plug Liner				$ 4.79
NI	218902101		Cap-protector, Lower Hinge		Appelez-nous	-
NI	5303001038		Washer, .28 X .62 .19, Nylon				$ 13.34
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
