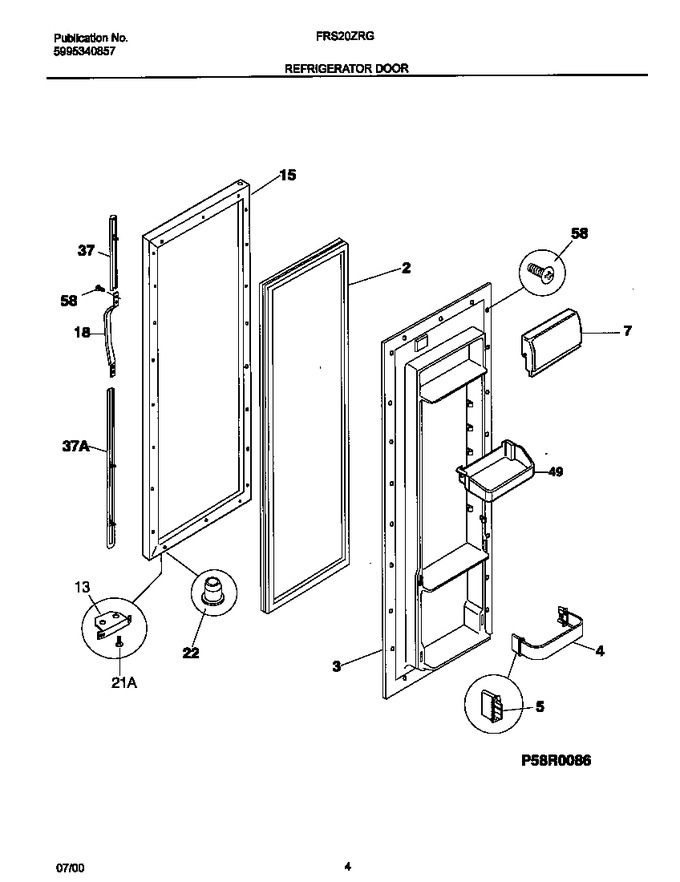

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 215734312 | Gasket-refr Door, White, Magnetic |
|
- | |||||
| 3 | 218749301 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 218807013 | Rack-door,w/end Caps |
|
- | |||||
| 5 | 5303288950 | Support-door Rack, Rh/lh |
|
$ 51.19 | |||||
| 7 | 5303308341 | Door-dairy,12.96`` Wide |
|
$ 97.02 | |||||
| 13 | 5303289522 | Door Stop |
|
$ 40.17 | |||||
| 15 | 5303918183 | Panel-ext Refr Door,white ,w/foam Insulatn |
|
- | |||||
| 18 | 297311201 | Handle-door, White (Replaces: 218762701) |
|
Immediately | $ 80.60 | ||||
| 21 | 218578600 | Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4 |
|
$ 8.08 | |||||
| 22 | 5303289320 | Bearing-hinge |
|
$ 19.69 | |||||
| 37 | 215867055 | Trim-handle, White, Upper, W/chrome Band |
|
$ 51.14 | |||||
| 37 | 215867053 | Trim-handle, White, Lower, W/chrome Band |
|
$ 70.72 | |||||
| 49 | 215441502 | Bin-door,gallon (Replaces: 215441513) |
|
$ 176.87 | |||||
| 58 | 218781101 | Screw,pan Head ,8-18 X 0.625 (Replaces: 218781100) |
|
$ 15.60 | |||||
| *04881 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 37A | 215782300 | Lock-handle Trim,snap-in |
|
$ 34.49 | |||||
| 37B | 218676001 | Band-decorative,chrome ,handle Trim |
|
$ 36.17 |
