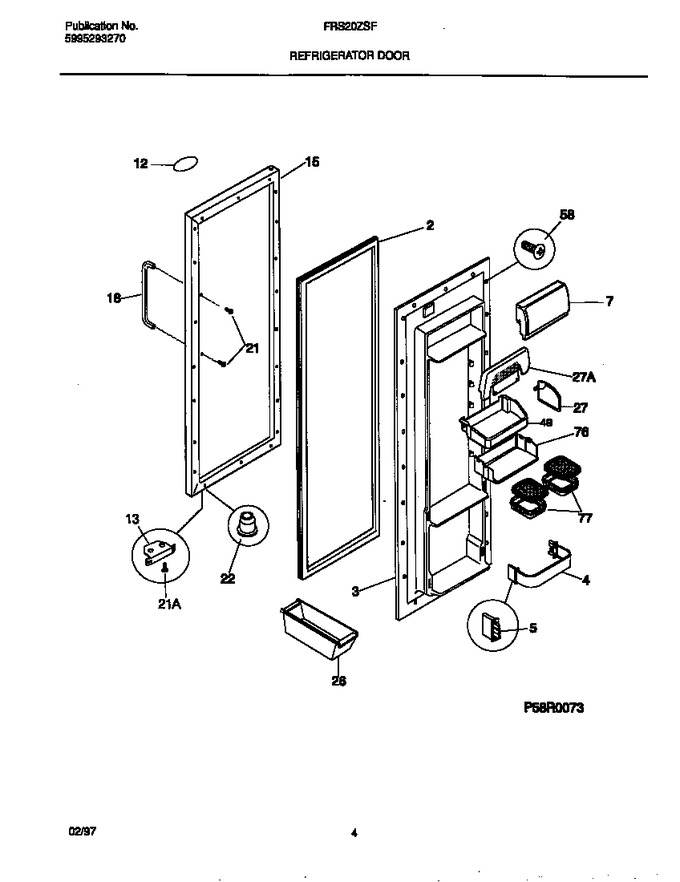

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215734322		Gasket-refr Door, Black, Magnetic				$ 282.50
3	218749301		Panel-inner Door, Refr		Appelez-nous	-
4	5303320230		Rack-door				$ 88.20
5	5303288950		Support-door Rack, Rh/lh				$ 51.19
7	5303308347		Door-dairy		Appelez-nous	-
12	218395401		Nameplate, Black		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
15	218618962		Panel-refr Door, Stainless Steel, W/foam Insulatn		Appelez-nous	-
18	218395301		Handle-door, Stainless Steel		Appelez-nous	-
21	218709100		Screw-handle Mtg, Hex Head, 10-32 X 1/2		Appelez-nous	-
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
22	5303289320		Bearing-hinge				$ 19.69
26	3204522		Container-egg				$ 98.33
27	218714201		Retainer, Tall Bottle				$ 42.72
27	218370101		Snugger-door Bin, ``paddle Type``, Gallon Door Bin				$ 88.03
49	215441502		Bin-door, Gallon, With Trim   (Replaces: 218592305)				$ 176.87
58	218749600		Screw, 10 Pan Head, 8-18 X 0.500				$ 5.15
76	218423900		Rack-microwave Dish		Appelez-nous	-
77	218423502		Dish-microwave, (2)		Appelez-nous	-
*14045	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
*14046	215361200		Foam Strip, Handle Mtg Hole		Appelez-nous	-
*14047	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
