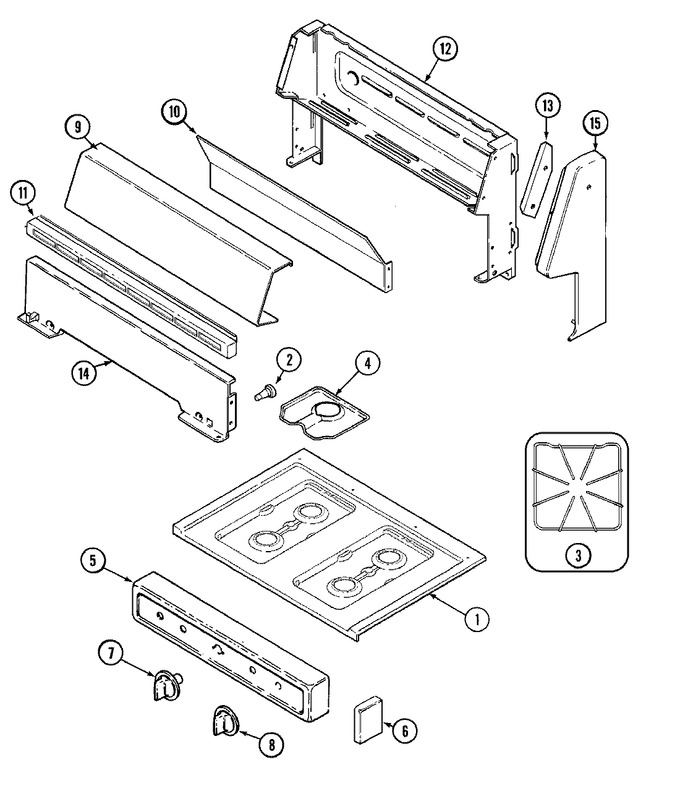

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303288566 | Top, Main (wht) (Replaces: 2001F098-81) | 01 |
|
$ 2.17 | ||||
| 2 | 8010P069-60 | Spacer, Hinge (main Top) | 01 |
|
$ 8.57 | ||||
| 3 | 2003W026-00 | Grate (blk) | 01 |
|
- | ||||
| 4 | 1430283 | Drip Bowl Kit (accessory) (Replaces: 5401A433-60) | 01 |
|
$ 95.86 | ||||
| 5 | 2616F095-09 | Panel, Manifold (blk) | 01 |
|
- | ||||
| 5 | 7101P311-60 | Screw----na | 01 |
|
- | ||||
| 5 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 01 |
|
Immediately | $ 12.62 | |||
| 6 | 7112P092-60 | Clip, Spring Grip | 01 |
|
- | ||||
| 6 | 7713P018-60 | End Cap, Panel (blk) | 01 |
|
- | ||||
| 7 | WP74002419 | Knob, Thermostat (Replaces: 7731P052-60) | 01 |
|
$ 18.54 | ||||
| 8 | WP7711P135-60 | Knob, Valve (blk) (Replaces: 7733P027-60) | 01 |
|
$ 25.06 | ||||
| 9 | 4851S025-59 | Panel, Control Assy | 01 |
|
- | ||||
| 9 | 3801F296-51 | Bracket, Backguard | 01 |
|
- | ||||
| 9 | W11233072 | Screw (Replaces: 7101P290-60) | 01 |
|
Immediately | $ 12.62 | |||
| 10 | 3604F170-09 | Shield, Flue | 01 |
|
- | ||||
| 11 | 3608F043-09 | Trim, Vent | 01 |
|
- | ||||
| 12 | 4001F084-51 | Housing, Backguard | 01 |
|
- | ||||
| 13 | 3807F435-45 | Support, Control Pnl (rt) | 01 |
|
- | ||||
| 13 | 3807F436-45 | Support, Control Pnl (lt) | 01 |
|
- | ||||
| 14 | 2612F037-81 | Backsplash (wht) | 01 |
|
- | ||||
| 15 | 7101P032-60 | Screw | 01 |
|
- | ||||
| 15 | 7726P070-60 | Trim, End Cap | 01 |
|
- | ||||
| 15 | 7726P069-60 | End Cap (rt-blk) | 01 |
|
- | ||||
| 15 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 01 |
|
$ 15.94 | ||||
| 16 | 16000329 | Guide, Quick Ref. - Magic Chef | 01 |
|
- | ||||
| 16 | 8113P011-60 | Manual, Use & Care | 01 |
|
- |
